Description

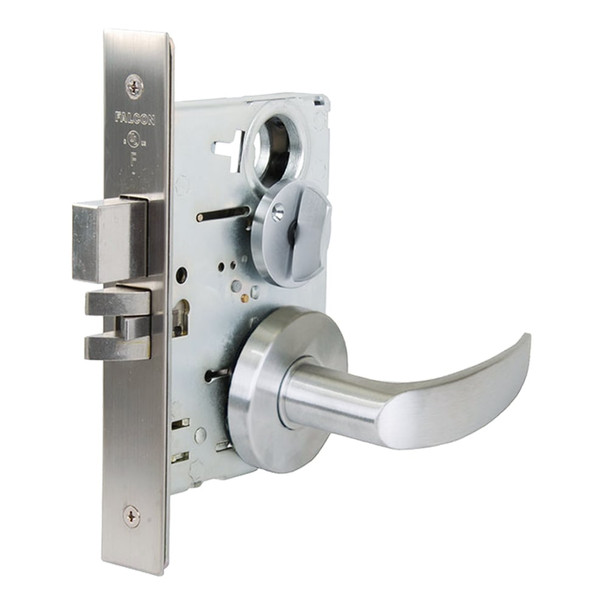

The Falcon MA571B AG 626 is a Grade 1 mortise lock engineered for high-traffic commercial doors requiring maximum security and durability. Built with cold-formed steel and hardened steel components, it handles constant use without fail. Ideal for building managers and security-conscious property owners who need reliable access control that won't compromise under pressure.
This lock fits standard door thicknesses from 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset. The AG 626 finish offers corrosion resistance in demanding environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing options, cylinder keying, and electrified configurations that match your security needs.
Specifications
- Brand: Falcon
- Model: MA571B AG 626
- Grade: Grade 1
- Type: Mortise Lock
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass cylinder and plug, 5, 6 or 7-pin available on standard cylinders, 6 or 7-pin available on interchangeable core cylinder
- Keyways: G keyway standard on standard cylinder, A keyway standard on I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with two 13/16 inch diameter hardened steel free-turning saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Keys: Two nickel silver keys standard
