Description

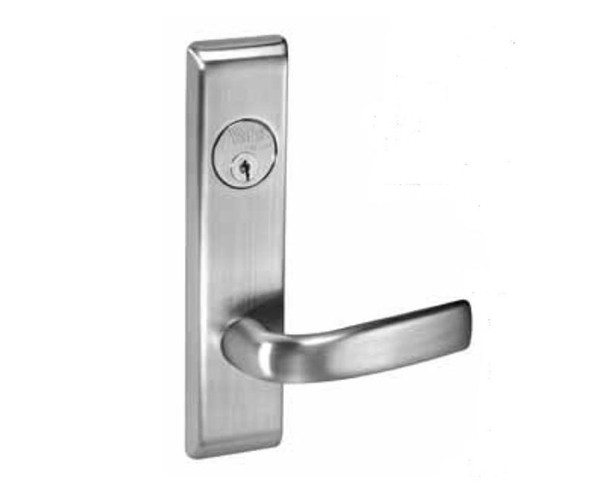

The Yale 8800 Series mortise lock is a heavy-duty, Grade 1 certified lock designed for commercial doors requiring uncompromising strength and security. Built with reinforced stainless steel deadbolts and vandal-resistant trim, it solves the need for reliable, long-lasting access control in high-traffic and demanding environments.
This lock fits standard 1-3/4" doors and features field-reversible handing and a nonhanded strike for flexible installation. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying, finish selection, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 with questions, and enjoy free shipping on orders over $450.
Specifications
- ANSI/BHMA Grade 1 Certified, Series 1000
- UL/cUL Fire Rated up to 3 hours
- Windstorm Certified
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inches standard, up to 3-1/4 inches to order
- Cylinders: 6-pin brass, keyed-random with two keys standard
- Bevel front, field-reversible handing
- Strike: 1-1/4 inch curved lip for 1-3/4 inch doors, reversible
- Available in 17 finishes
- 10-year mechanical warranty
