Description

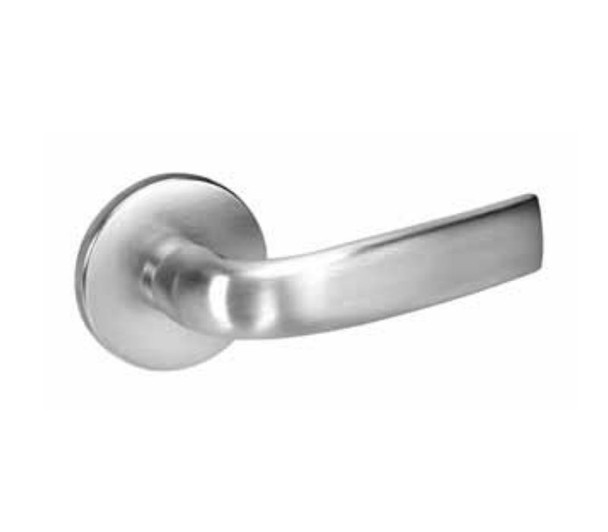

The Yale 8800 Series JNR8805FL mortise lock delivers ANSI/BHMA Grade 1 security for high-traffic commercial doors. Built with a reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, this lock suits office buildings, retail, healthcare, and institutional facilities where durability and reliability are non-negotiable.
Field-reversible handing and a standard nonhanded strike simplify installation on 1-3/4" doors. UL/cUL fire-rated up to 3 hours. As an authorized Yale dealer, E.D. Locks provides expert support, finish selection guidance, and specifications. Contact sales@edlocks.com or 1-877-207-6067 for keying options, custom door thicknesses, or technical questions. Free shipping on orders over $450.
Specifications
- ANSI/BHMA Certification: Grade 1, A156.13 Series 1000
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinder: Brass, 6-pin, keyed-random, two keys included
- Front: Bevel front, free-floating (adjusts flat to 1/8" bevel in 2")
- Strike: 1-1/4" curved lip for 1-3/4" door, reversible
- Fire Rating: UL/cUL rated up to 3 hours
- Warranty: 10-year mechanical
- Available Finishes: 17 finishes
