Description

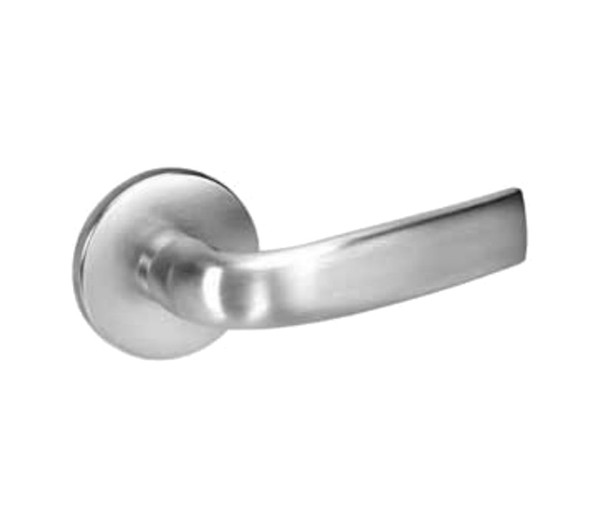

The Yale 8800 Series JNR8807FL mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors requiring uncompromising strength and durability. Built with a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, this lock suits office buildings, retail spaces, and institutional facilities where reliability is non-negotiable.
Field-reversible handing and standard nonhanded strike simplify installation on 1 3/4" to 3 1/4" thick doors. The lock features a 3/4" stainless steel latchbolt, 2 3/4" backset, and 6-pin cylinder with two keys included. For keying questions, compatibility with your door prep, or finish selection from 17 options, contact our security experts at sales@edlocks.com or 1-877-207-6067 to ensure the right fit for your application.
Specifications
- Certification: ANSI/BHMA A156.13 Grade 1, UL/cUL fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2 3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1 3/4" standard; up to 3 1/4" to order
- Cylinder: Brass, 6-pin keyed-random with two keys; 7-pin available to order
- Strike: 1 1/4" curved lip for 1 3/4" door standard; other sizes to special order
- Handing: Field reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
