Description
The Yale 8800 Series mortise lock is a Grade 1 commercial-duty solution for facilities requiring maximum security and durability. Designed for doors up to 3-1/4" thick, it features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing. Perfect for schools, offices, hospitals and multi-tenant buildings where long-term reliability matters.

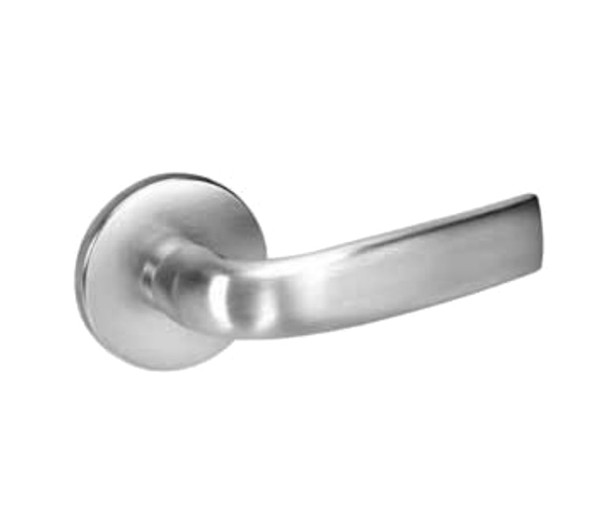

This trim pack includes heavy-duty lever trim, strike, and all necessary components for standard 1-3/4" doors. The 6-pin keyed-random cylinder comes with two keys; upgrade to 7-pin upon request. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, cylinder options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for specifications tailored to your building code requirements.
Specifications
- Certification: ANSI/BHMA A156.13 Grade 1, UL/cUL fire-rated to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" to order)
- Cylinder: 6-pin brass, keyed-random with 2 keys standard
- Strike: 1-1/4" curved lip, reversible
- Handing: Field reversible
- Finishes: 17 available
- Warranty: 10 years mechanical
