Description

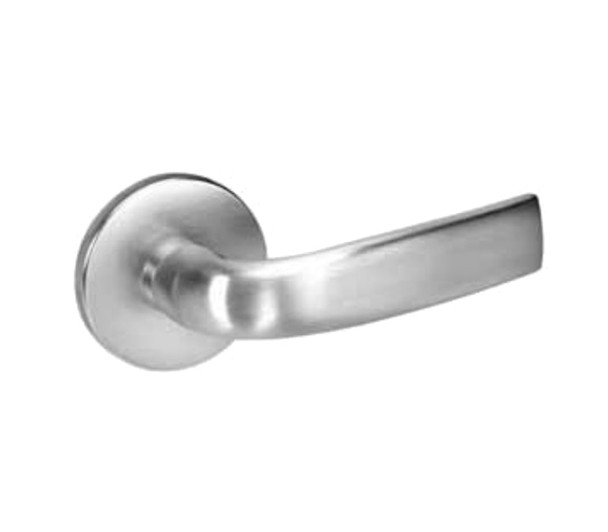

The Yale 8800 Series mortise lock is a commercial-grade locking mechanism designed for doors in offices, retail, hospitality and institutional settings. It solves the need for reliable, durable security with ANSI/BHMA Grade 1 certification, a reinforced stainless steel deadbolt, and heavy-duty vandal-resistant trim that stands up to high-traffic environments and frequent use.
This lock fits standard 1-3/4" doors and features field-reversible handing, a 3/4" stainless steel latchbolt, and a keyed-random 6-pin cylinder with two keys. As an authorized Yale dealer, E.D. Locks offers expert product guidance and fast shipping. Contact our sales team at sales@edlocks.com or 1-877-207-6067 with any questions about compatibility or installation.
Specifications
- Brand: Yale/Accentra
- Series: 8800
- Model: JNR8823FL
- Finish: 626
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- UL/cUL: Fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (to 3-1/4" available to order)
- Front: Bevel front, free-floating, adjusts flat to 1/8" bevel in 2"
- Cylinder: Brass, 6-pin, keyed-random, two keys included (7-pin available)
- Handing: Field reversible
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available)
- Warranty: 10 years mechanical
