Description

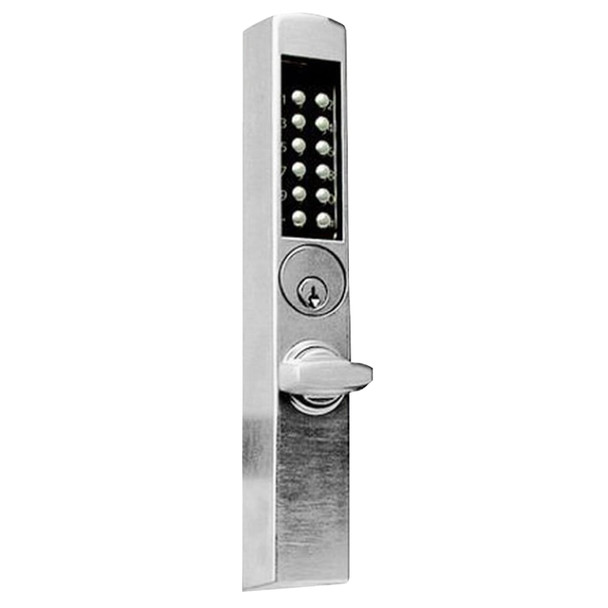

The DormaKaba E-Plex 3000 Series is an electronic pushbutton mortise deadbolt designed for narrow stile doors, providing secure exterior access via PIN codes while allowing free egress. It eliminates key management costs by supporting up to 300 access codes and recording 9,000 audit events. Ideal for commercial facilities requiring keyless entry with detailed access tracking.
This lock retrofits Adams Rite mortise devices (1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, and 8400 Series) with no door wiring required. Programmable via keypad with five authority levels, adjustable code length (4-8 digits), and anti-tamper protection. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and system configuration support.
Specifications
- Brand: DormaKaba
- Model: E3066MSNT-626-41
- Function: Mortise Deadbolt
- Backset: 31/32 inches (25 mm) minimum
- Door Thickness: 1 3/4 inches (44 mm)
- Minimum Stile Recommended: 2 inches (51 mm)
- Access Codes: 300 per door
- Audit Trail: 9,000 events
- Code Length: 4 to 8 digits (adjustable)
- Anti-tamper Lockout: 3 to 9 invalid attempts (adjustable)
- Re-lock Time: 2 to 20 seconds (adjustable)
- Key Override: Mortise Kaba Cylinder (Schlage C Keyway)
- Construction: Extra heavy-duty cast housing
- Keypad: Vandal resistant metal pushbuttons
- Handing: Non-handed, field changeable
- Finish: Satin Chrome
- Compatible Devices: Adams Rite 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, 8400 Series
