Description

Description

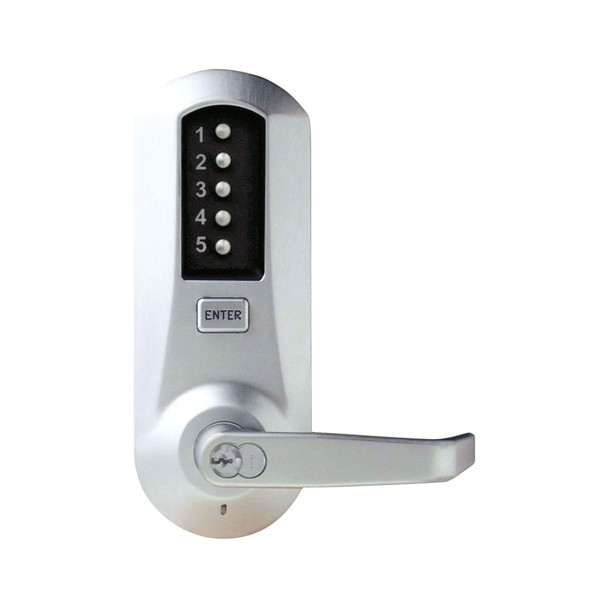

Kaba Simplex 5025BWL-26D-41 Mechanical Pushbutton Lever Lock W/ Key Override

Cylindrical Pushbutton Lock With Lever
Combination Entry With Key Best IC Prep (IC Core Sold Separate)
¾" (19 mm) latch
2-3/4" Backset
Satin Chrome

The latest addition to the line of mechanical pushbutton locks, the Simplex 5000 offers unparalleled strength, convenience, and flexibility. This extra heavy-duty lock contains internal drive parts of cast stainless steel and a clutch-free direct-drive design. Buttons are easy to press, and its sleek design will fit nicely with any existing décor. Designed for simplest installation possible, non-handed design fits both left and right hand doors — handing changes in seconds. Models available for both cylindrical and exit trim locking options. Kaba backs the Simplex 5000 with a three-year warranty.

Features:

Single access code - one easy to manage code for all users
Lock is easily programmed via keypad without removing lock from the door
Non-handed, pre-assembled for left-hand door installations - easily changed in the field
Key-in-lever cylinders, small format interchangeable cores, and large format removable cores

Locking Device Options:

Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)

Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/plates forvarious exit devices

Operation Mode Options:

Single credential access
Passage (select models) - Allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with allpassage feature models)
Exit trim may be "dogged" if exit device allows
Lockout (select models) - Disable the lock from the inside so that the entry code cannot be used to gain access. Access is permited using the key override only when in this mode (5067 model only)

Models:
