Description

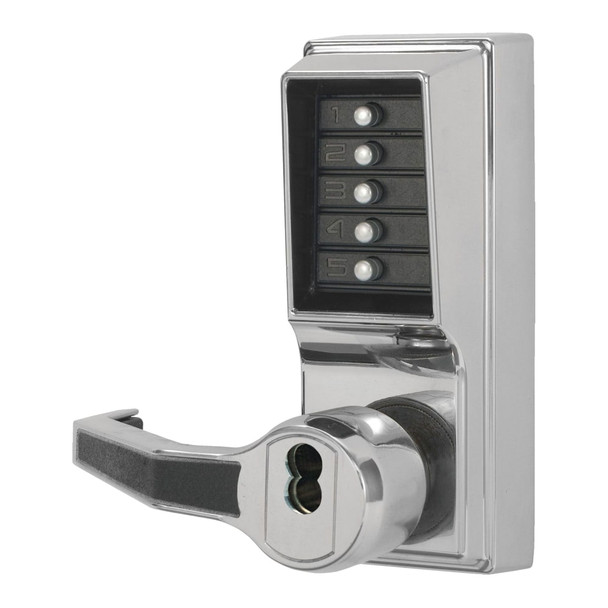

The DormaKaba L8146R-026-41 is a mechanical pushbutton lock designed for keyless access control in offices, laboratories, hospitals, and secure areas. No batteries, cards, or computers required. Change combinations in seconds without removing the lock, making it ideal for managing high-turnover spaces or restricted zones where traditional keys create security gaps.
This lock installs on standard 86 mortise preparation, fits doors 1.75 to 2.25 inches thick, and features ADA-compliant fixed levers and a 3-hour fire rating for labeled doors. It accepts removable cores (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent) and offers optional deadbolt upgrade. As an authorized DormaKaba dealer, E.D. Locks provides expert pre-sale guidance to ensure correct specification and smooth installation. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions or keying assistance.
Specifications
- Backset: 2.75 inches (70 mm)
- Latch: 0.75 inches (19 mm) two-piece anti-friction; 1 inch (25 mm) optional deadbolt
- Strike plate: 4.875 inches (124 mm) L x 1.25 inches (32 mm) W x 0.25 inches (6 mm) D
- Minimum stile recommended: 5 inches (127 mm)
- Door thickness: 1.75 to 2.25 inches (44 to 57 mm)
- Mortise preparation: Standard (86)
- Door type: Wood or metal
- Front housing: Cast with unified trim plate
- Keypad: Vandal-resistant solid metal pushbuttons
- Cores: Small format (Best, 6 or 7-pin) and large format removable (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin)
- Accessibility: ADA-compliant fixed levers
- Fire rating: 3-hour UL/ULC for A labeled doors
- Warranty: 3 years
- Weather resistant
