Description

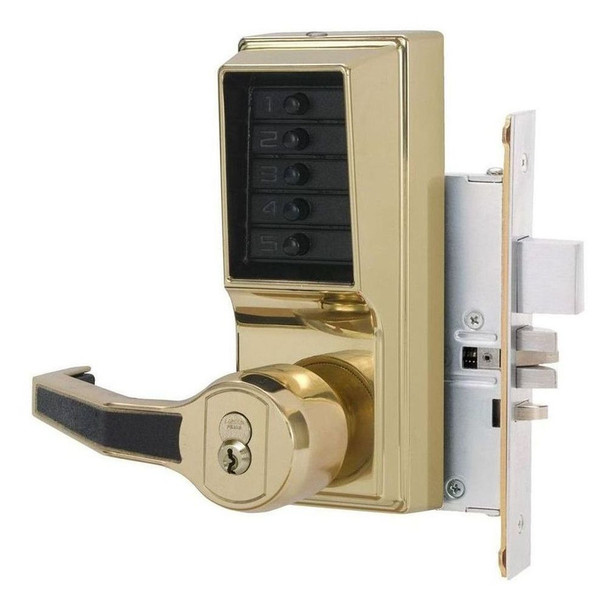

The DormaKaba L8148C-03-41 Simplex mechanical pushbutton lock provides keyless access control for offices, hospitals, and secure facilities. With no keys, cards, batteries, or programming required, this vandal-resistant lock lets you change combinations in seconds without removing it from the door, making it ideal for high-traffic areas needing frequent access updates.
This lock fits standard 86 mortise preparation on wood or metal doors 1 3/4" to 2 1/4" thick, with ADA-compliant fixed levers and a 3-hour UL/ULC fire rating. It accepts small format interchangeable cores (Best and equivalents) or large format removable cores (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent). Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert core selection and installation guidance.
Specifications
- Front Housing: Cast with unified trim plate
- Keypad: Vandal-resistant solid metal pushbuttons
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm) two-piece anti-friction; 1" (25 mm) optional deadbolt
- Minimum Stile: 5" (127 mm)
- Strike Plate: 4 7/8" L x 1 1/4" W x 1/4" D
- Door Preparation: Standard (86) mortise
- Door Thickness: 1 3/4" to 2 1/4"
- Accessibility: ADA-compliant fixed levers
- Weather Resistant: Yes
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Warranty: 3 years
- Interchangeable Cores: Small format (Best, 6 or 7-pin); core not included
- Removable Cores: Large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin); core not included
