Description

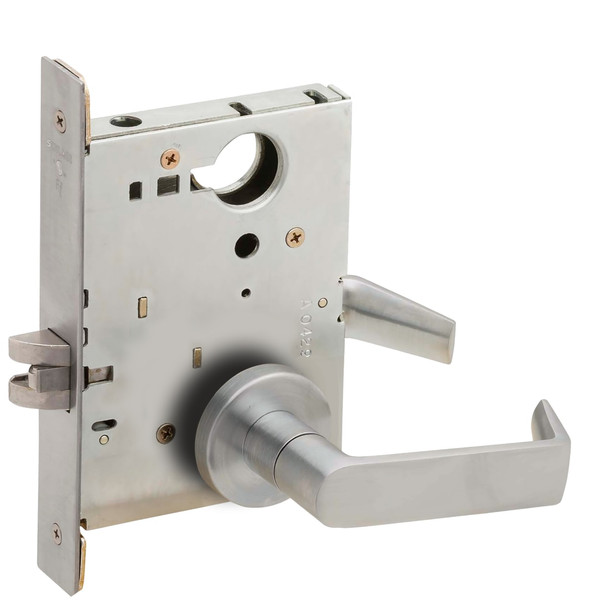

The Schlage L9010 06A 630AM is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a heavy-gauge steel case, all-metal zinc dichromate-plated working parts, and a two-piece anti-friction tongue designed to withstand constant use and abuse while maintaining reliable operation.
This mortise lock offers ten functions in one universal case with field-reversible handing, eliminating the need to open the lock for adjustment. Compatible with beveled doors via floating mounting tabs and standard mortise prep, the L9010 delivers fail-secure mode through a spring-loaded fusible link. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, finish selection, and installation support.
Specifications
- Model: L9010 06A 630AM
- Grade: ANSI Grade 1
- Finish: 630AM (Satin Stainless Steel)
- Function: 10-in-1 universal case
- Handing: Field-reversible without opening case
- Security: Fail-secure with spring-loaded fusible link
- Case: Heavy-gauge fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Anti-friction: Two-piece tongue design
