Description

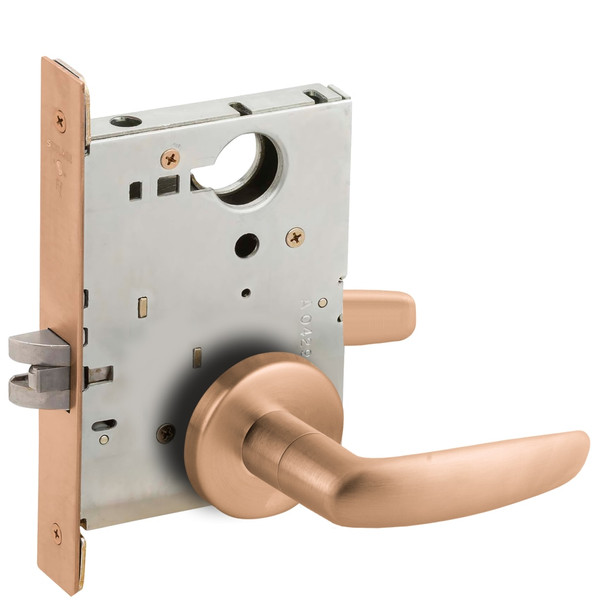

The Schlage L9010 07B 612 is an extra-heavy-duty mortise lock engineered for high-traffic institutional settings including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it delivers dependable security and consistent operation under constant use and abuse, solving durability and security challenges in demanding environments.
This mortise lock features a universal case with ten functions in one housing and field-reversible handing for flexible installation. Compatible with standard mortise cutouts, it installs through the door with thru-bolted trim. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for detailed specifications and compatibility assistance.
Specifications
- Brand: Schlage
- Series: L9000 (L-Series)
- Model: L9010 07B 612
- Type: Extra Heavy Duty Mortise Lock
- Security Grade: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Functions Available: Ten functions in one case
- Handing: Field-reversible without opening lock case
- Spindle: Break-away spindle with hub blocking plate
- Fire Safety: Spring-loaded fusible link for fail-secure mode
- Inside Trim: Screwless shank mounting, locking thumb-turn
- Lever Operation: Rotation in both directions, independent lever movement
- Mounting: Floating tabs adjust for beveled door edges
