Description

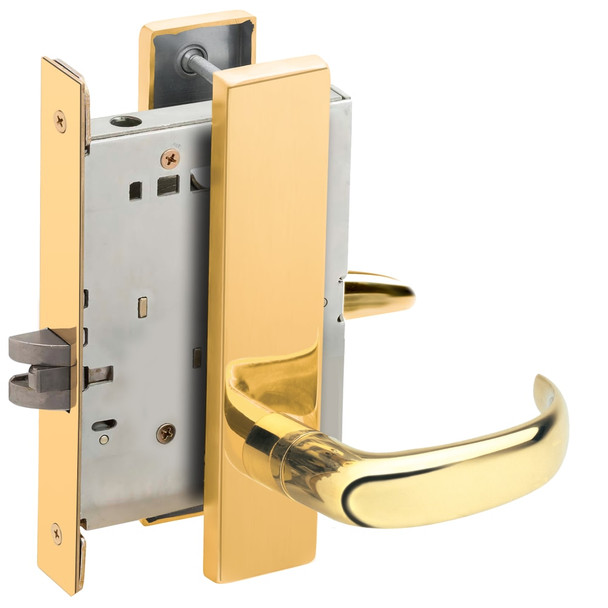

The Schlage L9010 17L 605 is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. ANSI Grade 1 certified, it features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design to withstand constant use without failure.
This universal lock case supports ten functions and field-reversible handing, simplifying installation and retrofit projects. Compatible with standard mortise lock applications, it includes a break-away spindle for security and easy replacement. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, keying, and compatibility with your door assembly.
Specifications
- Series: Schlage L-Series (L9000 grade)
- Model: L9010 17L 605
- ANSI Grade: 1
- Case Construction: Heavy-gauge, fully wrapped steel
- Plating: Zinc dichromate on working parts
- Functions Available: 10 in one case
- Handing: Field-reversible without opening lock case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Through-bolted trim, floating tabs for beveled doors
- Lever Operation: Independent rotation, both directions
