Description

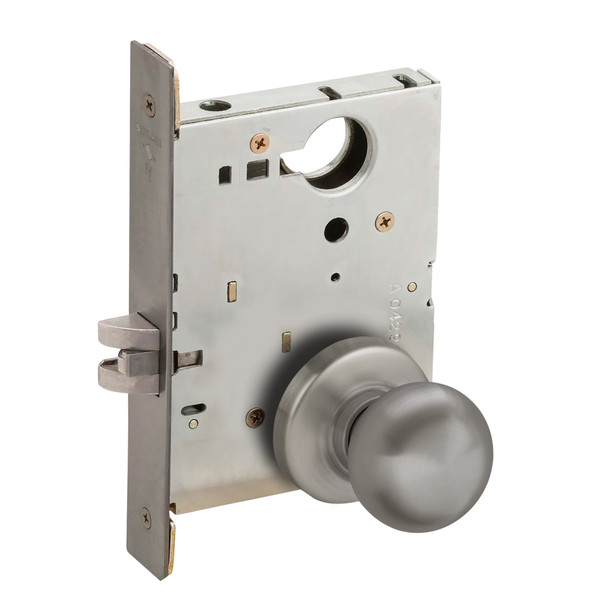

The Schlage L9010 41B 619 is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it resists door edge attacks, spindle manipulation, and constant daily abuse while maintaining dependable operation and aesthetic appeal.
This universal lock case accommodates ten functions in one design, with field-reversible handing and simple trim retrofit capability. Compatible with beveled doors via floating mounting tabs. As an authorized Schlage dealer, E.D. Locks provides expert configuration guidance and support. Contact sales@edlocks.com or call 1-877-207-6067 for keying options and installation questions.
Specifications
- Model: L9010 41B 619
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Series: L-Series Extra Heavy Duty
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate-plated parts
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure mode)
- Handing: Field-reversible without opening lock case
- Mount: Thru-bolted trim, screwless shank mounting
- Functions: Ten functions in one case
- Adaptability: Floating mounting tabs for beveled doors, universal lock case
