Description

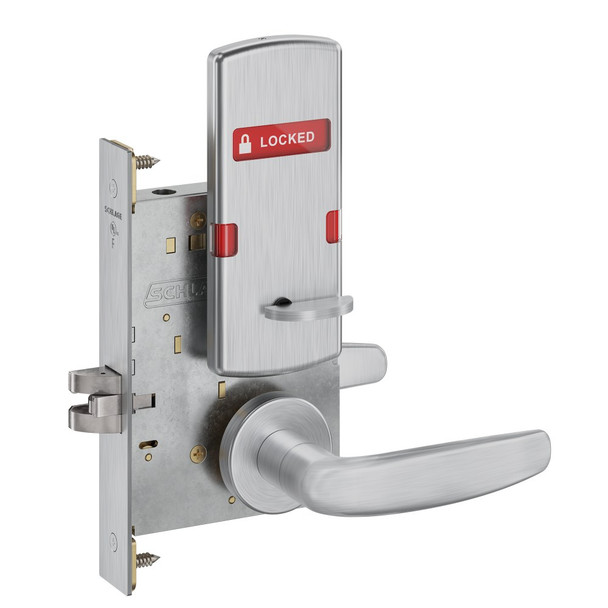

The Schlage L9040 is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. ANSI Grade 1 certified, it features a fully wrapped steel case, zinc-plated components, and anti-friction design to withstand constant use and abuse while maintaining reliable operation and security.
This universal case supports ten functions and field-reversible handing without disassembly, making it adaptable to beveled doors and retrofit applications. For proper sizing, keying options, and expert installation guidance, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI Grade 1
- Series: L-Series L9000
- Case Type: Mortise
- Finish: 626 (Satin Chrome)
- Functions: Universal 10-function case
- Handing: Field-reversible
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure fire mode
- Construction: Heavy-gauge wrapped steel case, zinc dichromate-plated working parts, all-metal components
- Trim Mount: Thru-bolted, screwless inside lever shank
- Mounting: Floating tabs for beveled doors
