Description

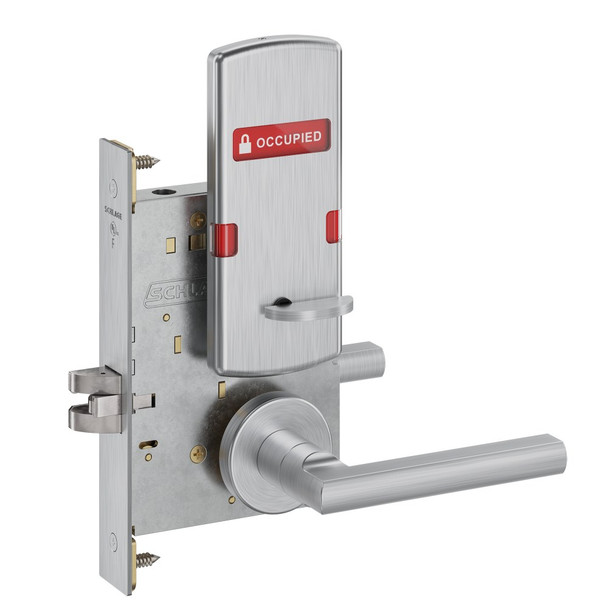

The Schlage L9040 LATN 626 is a heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. Its Grade 1 ANSI rating, fully wrapped steel case, and zinc dichromate-plated components deliver durability and consistent operation under constant use and abuse.
This lock is field-reversible and compatible with standard mortise prep on 1.5-inch doors. The universal case supports ten functions, allowing trim retrofit without opening the lock. Contact our authorized Schlage dealers at sales@edlocks.com or 1-877-207-6067 for keying, handing, and function selection guidance tailored to your application.
Specifications
- Series: L-Series L9000
- Model: L9040 LATN 626 L283-712
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Spindle: Break-away, user replaceable
- Handing: Field-reversible without opening case
- Functions: Ten functions in one case
- Fire Safety: Spring-loaded fusible link, fail-secure mode
- Mounting: Floating tabs adjust for beveled doors, thru-bolted trim
