Description

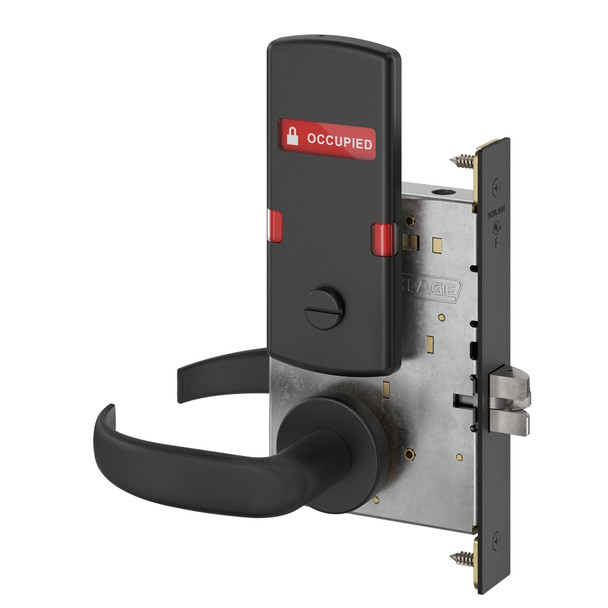

The Schlage L9044 is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a fully wrapped steel case, all-metal zinc dichromate-plated parts, and a two-piece anti-friction tongue to withstand constant use without fail.
This universal lock case supports ten functions and is field-reversible without opening the case, making retrofit and keying simple. Compatible with standard mortise lock applications and beveled doors via floating mounting tabs. For expert assistance with function selection, keying, and installation, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Series: Schlage L-Series L9000
- Model: L9044 17A 622
- Security Rating: ANSI Grade 1
- Case Construction: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Handing: Field-reversible without opening case
- Functions Available: Ten functions in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Floating tabs adjust for beveled doors, thru-bolted trim
- Inside Lever: Screwless shank mounting, independent rotation
