Description

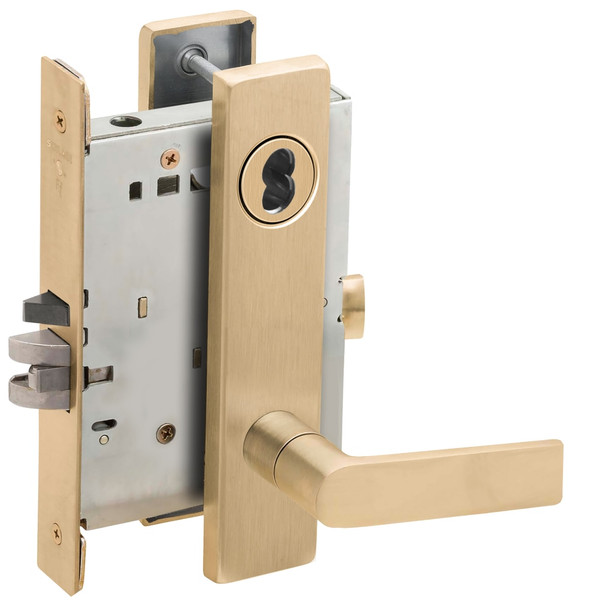

The Schlage L9050B is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock features a fully wrapped steel case, zinc dichromate-plated working parts, and a two-piece anti-friction tongue designed to withstand constant use and abuse without compromising security or operation.
The L9050B offers ten functions in one universal case, field-reversible handing, and a fail-secure design with break-away spindle for fire safety. Trim retrofit is simple thanks to external spring cages and floating mounting tabs that adapt to beveled doors. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, configuration, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Model: L9050B 01L 606 L583-363
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Duty: Extra Heavy-Duty
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Functions: 10 in one case
- Handing: Field-reversible without opening lock case
- Fire Safety: Fail-secure with spring-loaded fusible link
- Security Features: Break-away spindle, hub blocking plate, independent lever rotation
