Description

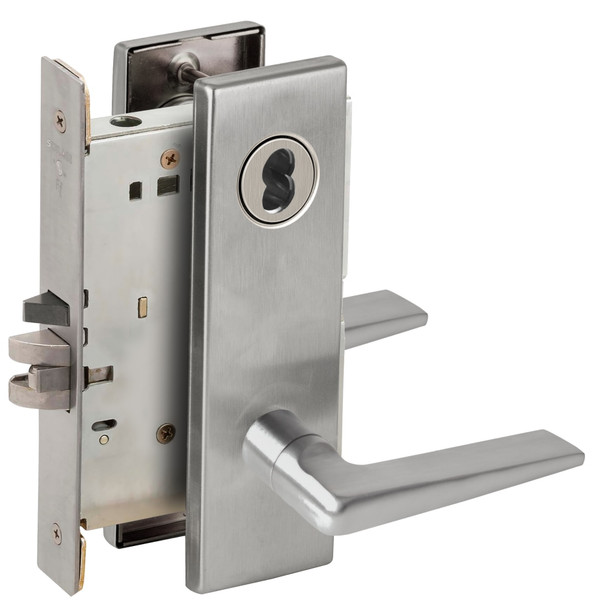

The Schlage L9050B is an extra heavy-duty mortise lock engineered for high-traffic institutional settings including schools, hospitals, and factories. This ANSI Grade 1 certified lock features a fully wrapped steel case, anti-friction components, and electronic protection to withstand constant daily use and abuse while maintaining reliable operation.
The L9050B offers universal ten-function capability with field-reversible handing, fire-rated fail-secure mode via fusible link, and simple trim retrofit options. Designed for 1 3/4-inch thick doors, this lock is compatible with standard mortise preparations. As an authorized Schlage dealer, E.D. Locks provides expert installation guidance and keying support. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and project assistance.
Specifications
- Brand: Schlage
- Model: L9050B 05N 630
- Series: L-Series Extra Heavy Duty
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Functions: Ten functions in one case
- Handing: Field-reversible
- Door Thickness: 1 3/4 inches
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link, independent lever rotation, locking thumb-turn, floating mounting tabs
