Description

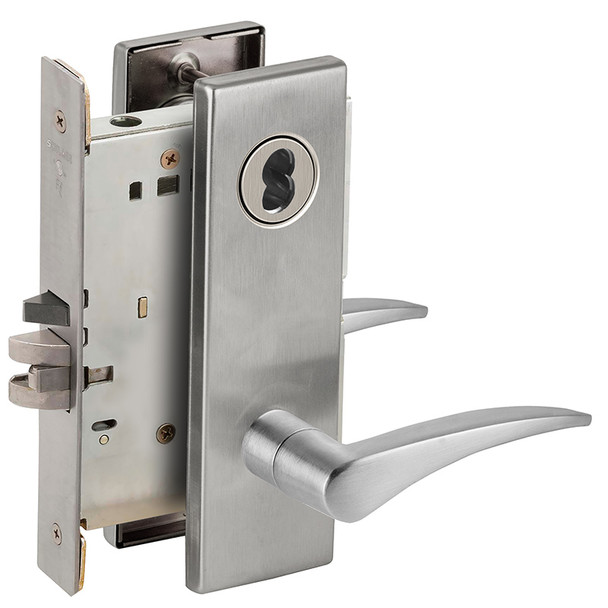

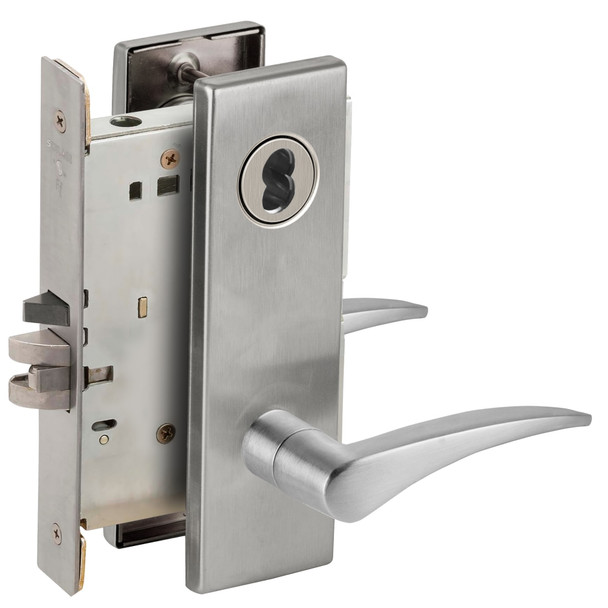

The Schlage L9050B is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. This Grade 1 ANSI-certified lock features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design to deliver consistent, dependable operation under constant use and abuse.
The L9050B accommodates ten functions in one universal case with field-reversible handing, eliminating the need to open the lock during installation. Compatible with standard mortise prep doors, this lock includes a break-away spindle for security and easy replacement. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, keying options, and application setup.
Specifications
- Grade: ANSI Grade 1
- Series: L-Series (L9000)
- Case Type: Heavy-gauge, fully wrapped steel
- Plating: Zinc dichromate
- Functions: Ten functions in one case
- Handing: Field-reversible RH (right-hand)
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Floating tabs for beveled doors, external spring cages
- Trim: Thru-bolted through door
