Description

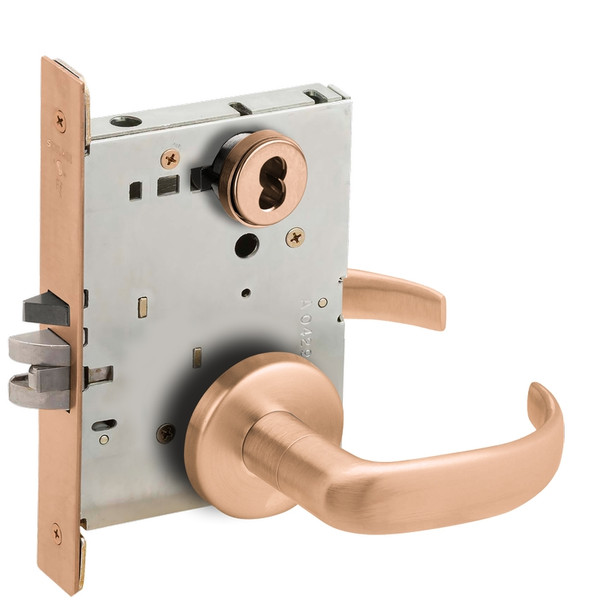

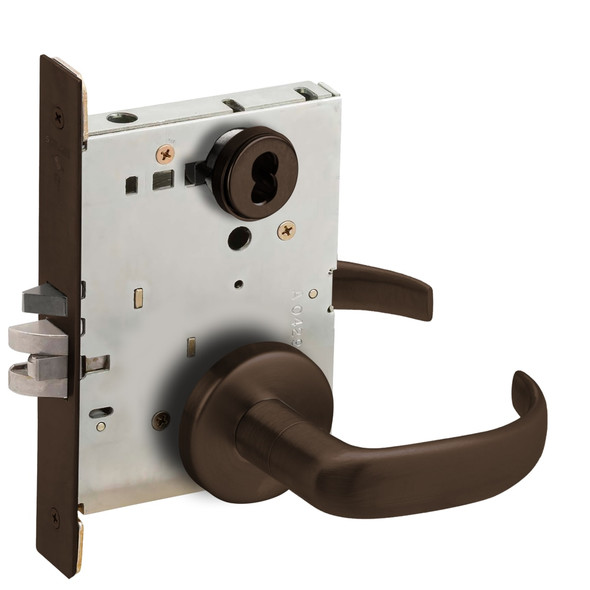

The Schlage L9050B is an ANSI Grade 1 extra heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. Its fully wrapped steel case, zinc-plated components, and two-piece anti-friction tongue deliver years of reliable performance under constant use and abuse.
This universal lock case supports ten functions in one body and field-reversible handing without disassembly, simplifying installation and future adjustments. Floating mounting tabs accommodate beveled door edges. As an authorized Schlage dealer, E.D. Locks offers expert guidance on keying, compatibility, and specification selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Schlage
- Model: L9050B 17B 612
- Series: L-Series, L9000
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Duty Rating: Extra Heavy Duty
- Case Material: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Functions: 10 available in universal case
- Handing: Field-reversible without opening lock
- Special Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure), screwless shank mounting, external spring cages, locking thumb-turn, independent lever rotation
- Door Edge Compatibility: Adjustable floating mounting tabs for beveled edges
