Description

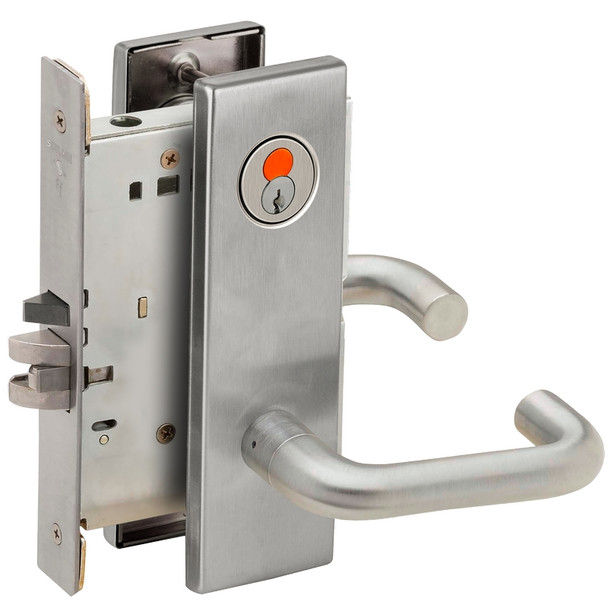

The Schlage L9050H is an extra heavy-duty mortise lock built for high-traffic commercial environments like schools, hospitals, and factories. It delivers ANSI Grade 1 rated security with a fully wrapped steel case, zinc-plated working parts, and anti-friction design to withstand constant use and abuse without fail.
This universal lock case supports ten functions in one unit and is field-reversible without opening the case, making installation flexible for beveled doors. The fail-secure design includes a break-away spindle and spindle manipulation blocker. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying guidance and expert support from an authorized Schlage dealer.
Specifications
- Model: L9050H 03N 626
- Grade: ANSI Grade 1
- Series: L-Series Extra Heavy Duty
- Finish: Satin Chrome (626)
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Functions: Ten functions in one case
- Handing: Field-reversible without opening case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link fail-secure mode
- Installation: Two-piece anti-friction tongue, floating mounting tabs for beveled doors
