Description

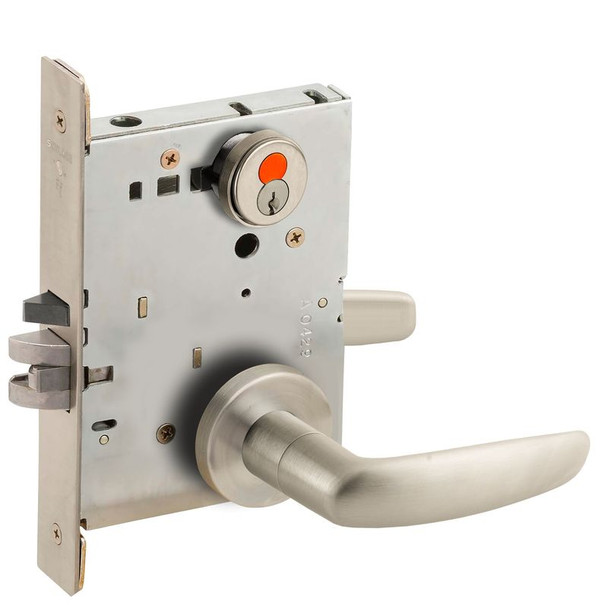

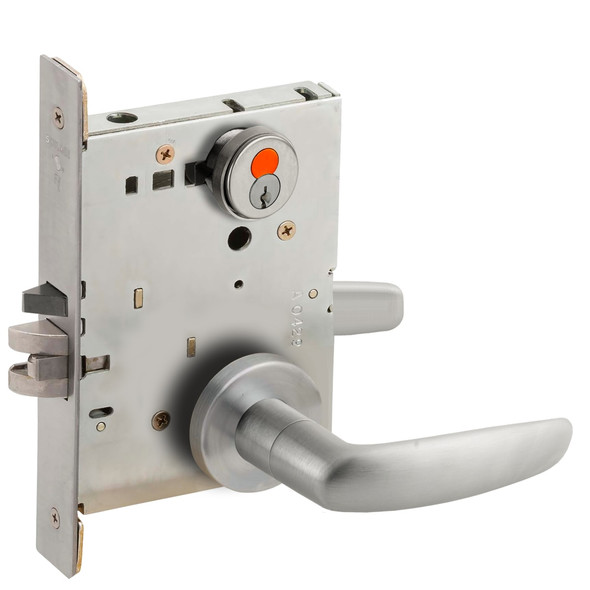

The Schlage L9050H is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a heavy-gauge steel case, all-metal zinc dichromate-plated components, and a two-piece anti-friction tongue designed to withstand constant daily use and abuse.
This mortise lock is field-reversible without opening the case and adapts to beveled doors with floating mounting tabs. For proper installation and keying options, contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067. We provide expert guidance to ensure the right configuration for your security requirements and budget.
Specifications
- Series: L-Series (L9000)
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge steel with zinc dichromate-plated working parts
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure fire mode
- Functions: Ten functions in one universal case
- Handing: Field-reversible without opening lock case
- Installation: Floating mounting tabs for beveled door edges, thru-bolted trim
- Interior: Screwless shank mounting, locking thumb-turn indicator
