Description

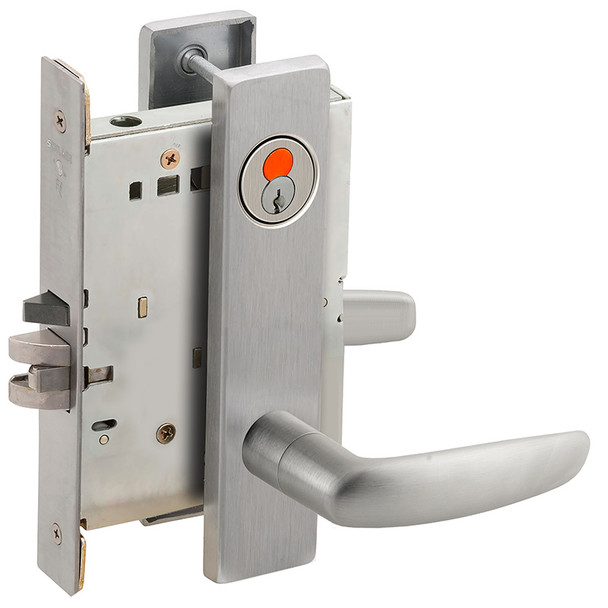

The Schlage L9050H is an ANSI Grade 1 extra heavy-duty mortise lock designed for high-traffic commercial environments including schools, hospitals, and factories. Built with a heavy-gauge steel case, zinc dichromate-plated components, and anti-friction technology, this lock withstands constant use and abuse while maintaining reliable operation.
The L9050H accommodates ten functions in one universal case and features field-reversible handing without opening the lock. Compatible with standard mortise lock installations, this lock includes fail-secure fire protection via a spring-loaded fusible link. For expert assistance selecting the right configuration or keying options for your application, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage
- Model: L9050H 07L 626
- Grade: ANSI Grade 1
- Type: Mortise Lock
- Duty Rating: Extra Heavy Duty
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated all-metal
- Tongue: Two-piece anti-friction design
- Functions Available: 10 in one case
- Handing: Field-reversible without opening case
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Security Features: Break-away spindle, hub blocking plate
- Mounting: Floating tabs adjust for beveled door edges
- Trim Mount: Screwless shank mounting, no exposed screws
