Description

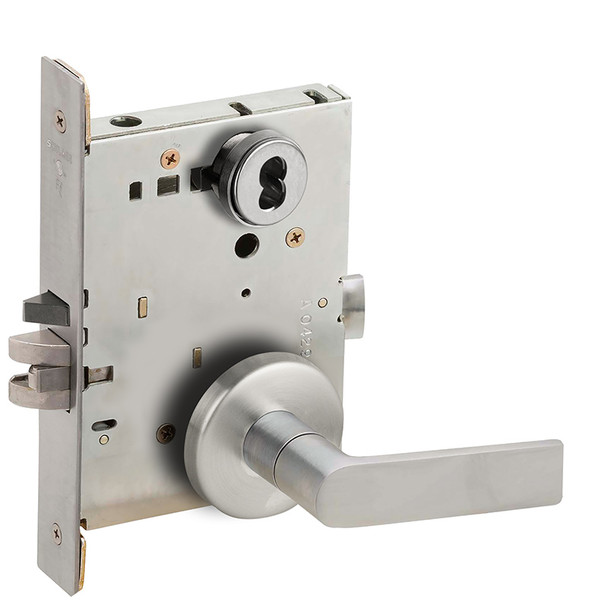

The Schlage L9050J 01B 626 is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock combines durability with dependable operation, featuring a heavy-gauge steel case and all-metal working parts designed to withstand constant use and abuse without fail.
The L9050J supports ten functions in one universal case with field-reversible handing, making it adaptable to beveled doors and retrofit applications. Installation is straightforward with no exposed trim mount screws and floating mounting tabs for door edge adjustment. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, compatibility, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Model: L9050J 01B 626
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Series: L-Series (Extra Heavy Duty)
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Functions: 10 functions in universal case
- Handing: Field-reversible without opening case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure mode)
- Mounting: Floating tabs for beveled door edges, thru-bolted trim
- Finish: 626 (Satin Chrome)
