Description

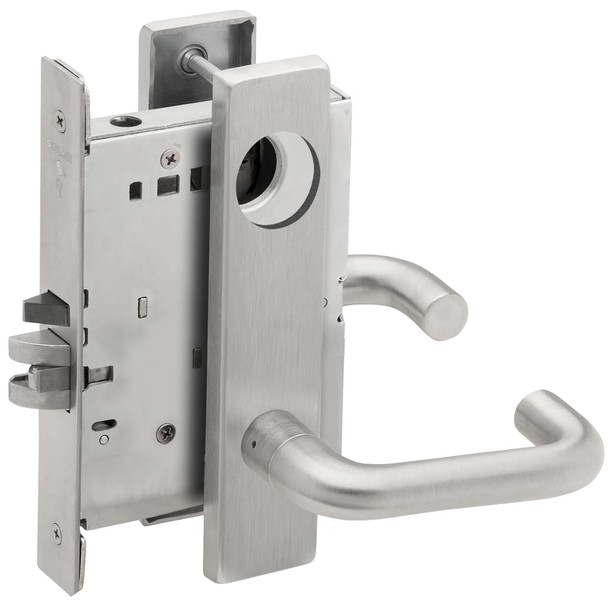

The Schlage L9050L 03L 630 is an extra heavy-duty mortise lock engineered for high-traffic institutional environments like schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a heavy-gauge steel case, zinc dichromate-plated components, and a two-piece anti-friction tongue to resist wear and abuse while maintaining reliable operation.
This mortise lock is field-reversible without opening the case and compatible with beveled doors via floating mounting tabs. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection, finish options, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification verification and ordering assistance.
Specifications
- Brand: Schlage
- Model: L9050L 03L 630
- Grade: ANSI Grade 1
- Type: Mortise Lock, Extra Heavy Duty
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate-plated parts
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Handing: Field-reversible without opening case
- Mounting: Floating tabs for beveled door adjustment, thru-bolted trim
- Functions: Ten functions available in single case
- Finish: 630 (Satin Stainless Steel)
