Description

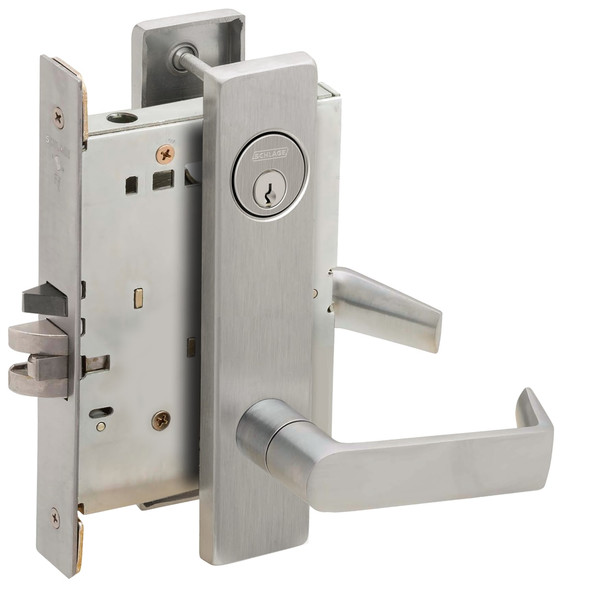

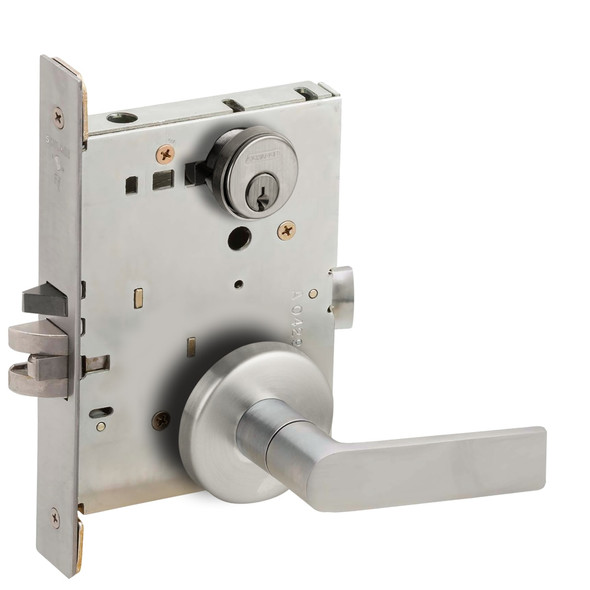

The Schlage L9050P is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. This ANSI Grade 1 certified lock features a fully wrapped steel case, zinc dichromate-plated components, and a break-away spindle to prevent unsecured failures and simplify maintenance.
The L9050P accommodates ten functions in one universal case and is field-reversible without opening the lock. Compatible with standard mortise applications, this lock installs with through-bolted trim and external spring cages for easy retrofit. For expert guidance on keying, handing, and installation, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage
- Model: L9050P 06A 626
- Certification: ANSI Grade 1
- Finish: 626 (Satin Chrome)
- Lock Type: Mortise
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated
- Functions: 10 in one case
- Spindle: Break-away design
- Handing: Field-reversible
- Mounting: Through-bolted trim with floating tabs
