Description

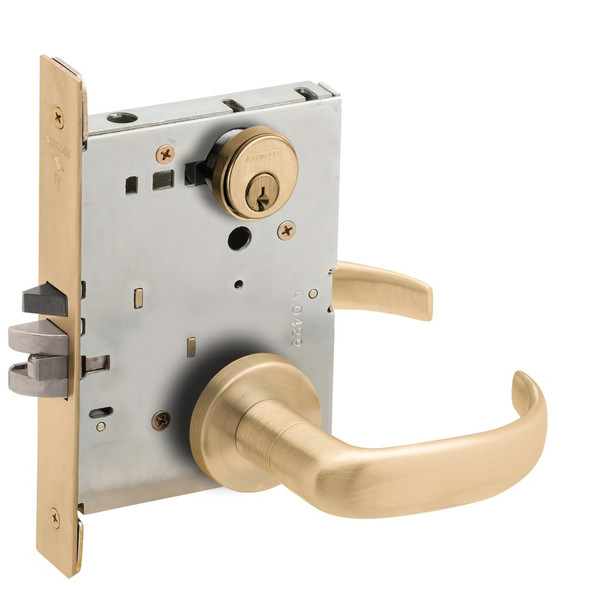

The Schlage L9050P is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. This Grade 1 certified lock withstands constant use and abuse with a fully wrapped steel case, zinc-plated components, and anti-friction tongue design that reduces wear while maintaining dependable operation.
Compatible with standard mortise preparations and field-reversible without opening the case. This lock features fail-secure fire mode via fusible link, break-away spindle for easy replacement, and locking thumb-turn visibility. As an authorized Schlage dealer, E.D. Locks offers expert guidance on function selection and installation. Contact sales@edlocks.com or 1-877-207-6067 for keying and application support.
Specifications
- Series: Schlage L-Series (L9000)
- Model: L9050P 17A 626
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge wrapped steel
- Plating: Zinc dichromate
- Functions Available: 10 in one universal case
- Spindle: Break-away design with hub blocking plate
- Mounting: Field-reversible handing, floating tabs for beveled doors
- Fire Mode: Fail-secure with spring-loaded fusible link
- Trim Mount: Screwless shank mounting, thru-bolted trim
