Description

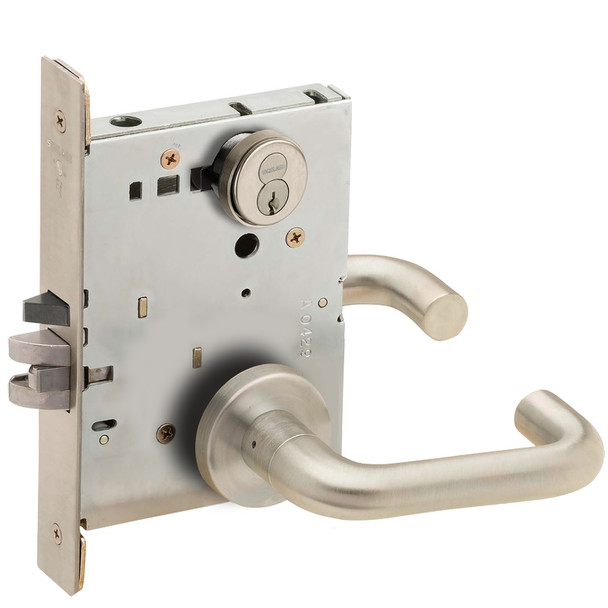

The Schlage L9050R 03A 619 is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. It solves the security and durability challenge in demanding settings where locks endure constant use and require ANSI Grade 1 protection without compromising aesthetics or reliable operation.
This universal lock case accommodates ten functions in one unit and features field-reversible handing without opening the case. Compatible with standard mortise lock preparations, it installs with external spring cages and floating mounting tabs for beveled doors. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and assured product support from an authorized Schlage dealer.
Specifications
- Series: L9000 (L Series)
- Model: L9050R 03A 619
- Grade: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Installation: Field-reversible handing, floating mounting tabs for beveled doors, external spring cages
- Functions: Universal case with ten functions available
- Trim Mounting: Screwless shank mounting, thru-bolted through door
