Description

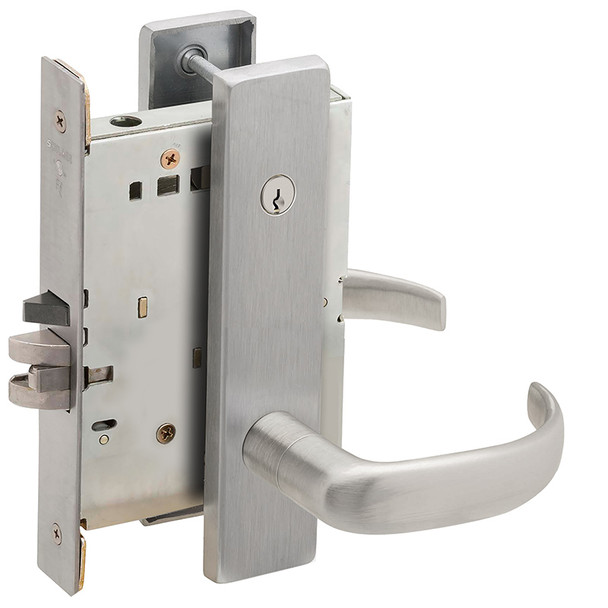

The Schlage L9056C 17L 626 is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a heavy-gauge steel case, zinc dichromate-plated components, and a two-piece anti-friction tongue to withstand constant daily use and abuse without compromising security or aesthetics.
This universal lock case accommodates ten functions and field-reversible handing, making it adaptable to beveled doors and retrofit applications. The break-away spindle prevents unsecured failures and allows easy replacement. For expert guidance on compatibility, keying options, and installation, contact E.D. Locks' authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: L9056C 17L 626
- Grade: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel
- Finish: Zinc dichromate-plated working parts
- Handing: Field-reversible without opening lock case
- Functions: Ten available in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link fail secure mode
- Mounting: Thru-bolted trim with screwless shank mounting
- Door Compatibility: Adjustable floating tabs for beveled doors
