Description

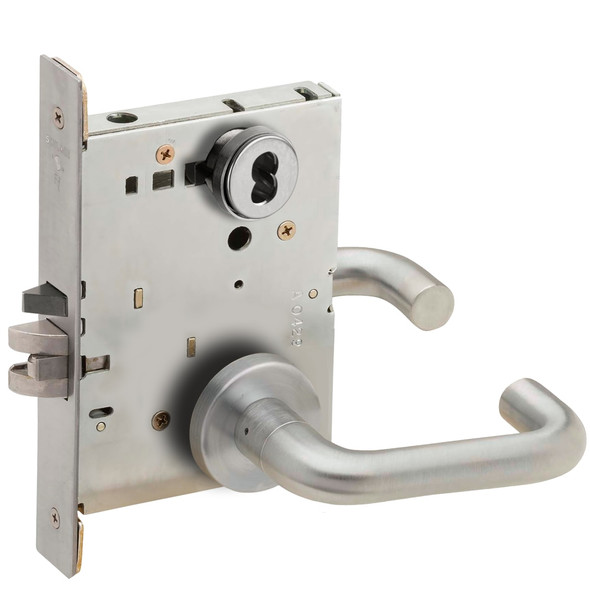

The Schlage L9056J is an extra heavy-duty mortise lock built for high-traffic commercial environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a fully wrapped steel case, anti-friction components, and break-away spindle to resist daily wear, abuse, and security threats while ensuring reliable operation.
This universal mortise lock accommodates ten functions in one case with field-reversible handing, making retrofit and installation flexible across beveled doors. Compatible with standard mortise preparations. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Series: L9000 (L Series Extra Heavy Duty)
- Model: L9056J 03A 626AM
- ANSI Grade: Grade 1
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate-plated working parts
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Handing: Field-reversible without opening lock case
- Mounting: Floating tabs for beveled doors, thru-bolted trim
- Functions: 10 available in universal case
- Inside Trim: Locking thumb-turn, screwless shank mounting
- Lever Rotation: Independent, bidirectional
