Description

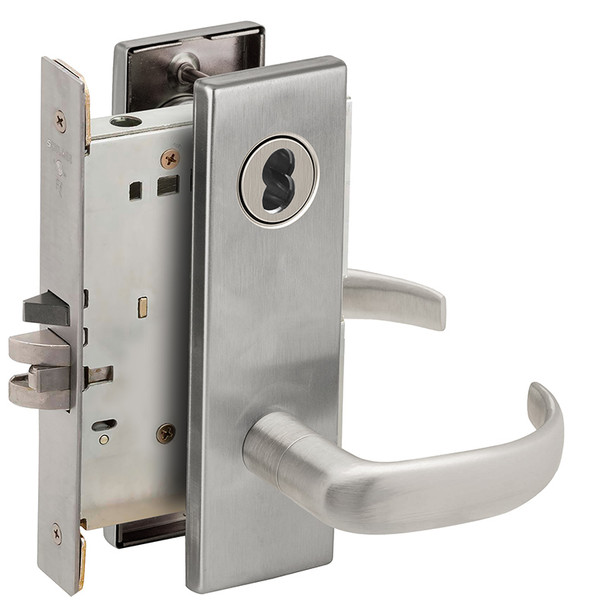

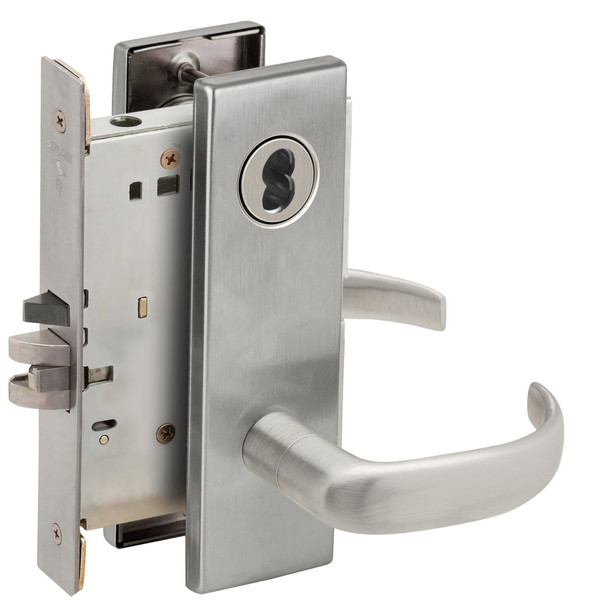

The Schlage L9056J 17N 630 is an extra heavy-duty mortise lock engineered for high-traffic institutional settings like schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, all-metal zinc dichromate-plated components, and anti-friction design to withstand constant daily use and abuse without failure.
This universal lock case accommodates ten functions and offers field-reversible handing without opening the case, making retrofit and reconfiguration simple. Compatible with beveled doors via floating mounting tabs. As an authorized Schlage dealer, E.D. Locks provides expert configuration guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for application assistance.
Specifications
- Brand: Schlage
- Series: L Series (L9000)
- Model: L9056J 17N 630
- Grade: ANSI Grade 1
- Type: Mortise Lock
- Functions: Universal case, 10 functions
- Case Construction: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Mounting: Thru-bolted trim, floating tabs for beveled doors
- Handing: Field-reversible without opening case
- Inside Control: Locking thumb-turn, screwless shank mounting
- Lever Operation: Rotation in both directions, independent lever rotation
