Description

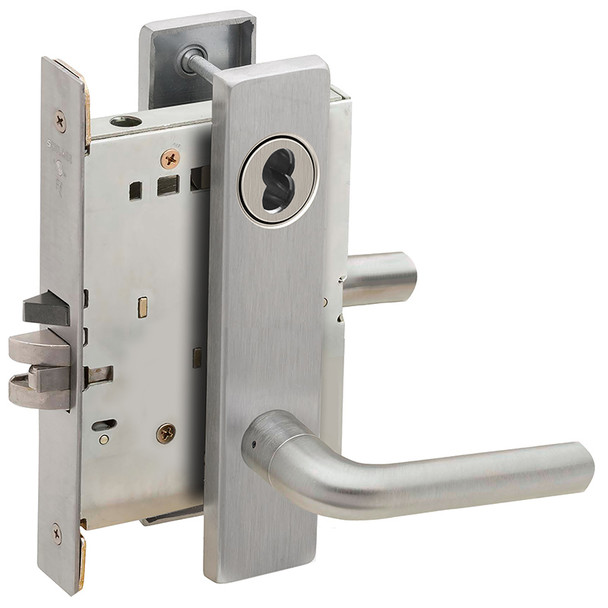

The Schlage L9070B mortise lock is an extra heavy-duty security solution designed for high-traffic institutional environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock withstands constant use and abuse with heavy-gauge steel construction, zinc dichromate-plated components, and anti-friction technology that reduces wear and extends service life.
The L9070B offers universal 10-function capability in a single case, field-reversible handing, and fail-secure operation via spring-loaded fusible link. Compatible with standard mortise lock applications; trim retrofit is simplified by external spring cages and floating mounting tabs for beveled doors. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying, handing, and installation guidance.
Specifications
- Series: Schlage L Series
- Model: L9070B 02L 626
- Duty Rating: ANSI Grade 1
- Lock Type: Extra Heavy-Duty Mortise
- Case Material: Heavy-gauge steel with zinc dichromate plating
- Functions: 10 functions in one case
- Handing: Field-reversible
- Fire Safety: Spring-loaded fusible link, fail-secure
- Security Features: Break-away spindle, hub blocking plate
- Installation: Floating mounting tabs, external spring cages
