Description

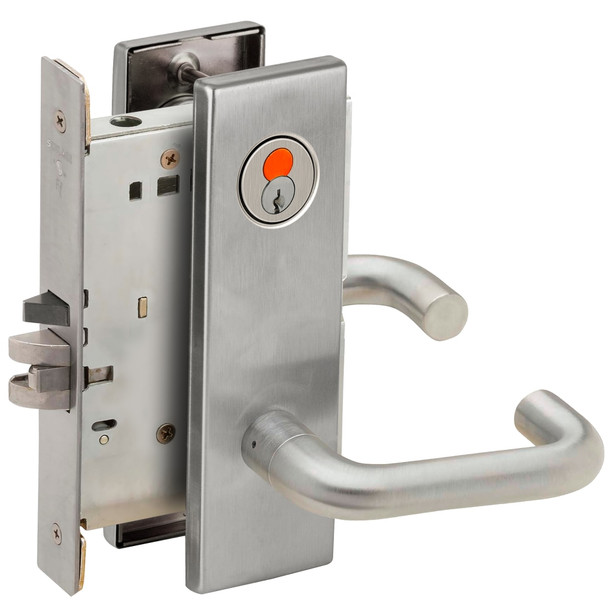

The Schlage L9070H is an extra heavy-duty mortise lock built for high-traffic commercial environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a fully wrapped steel case, zinc-plated working parts, and anti-friction tongue to withstand constant use and abuse without fail.
This universal lock case supports ten functions in one body and is field-reversible without opening the case. Compatible with standard mortise preparations on beveled or square doors. Schlage mortise locks are backed by expert support from E.D. Locks, an authorized U.S. dealer. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility verification, keying options, and installation guidance.
Specifications
- Brand: Schlage
- Model: L9070H 03N 626
- Type: Extra Heavy Duty Mortise Lock
- Grade: ANSI Grade 1
- Functions: Universal case, ten functions available
- Case Material: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Installation: Field-reversible handing, floating mounting tabs, external spring cages
- Inside Trim: Screwless shank mounting, locking thumb-turn
