Description

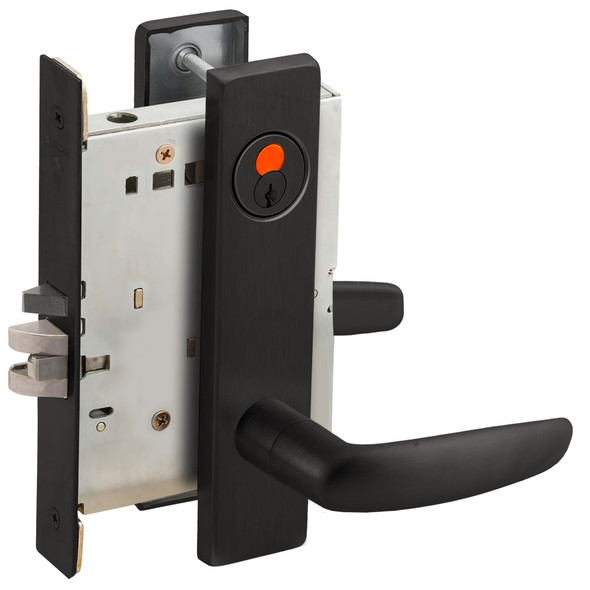

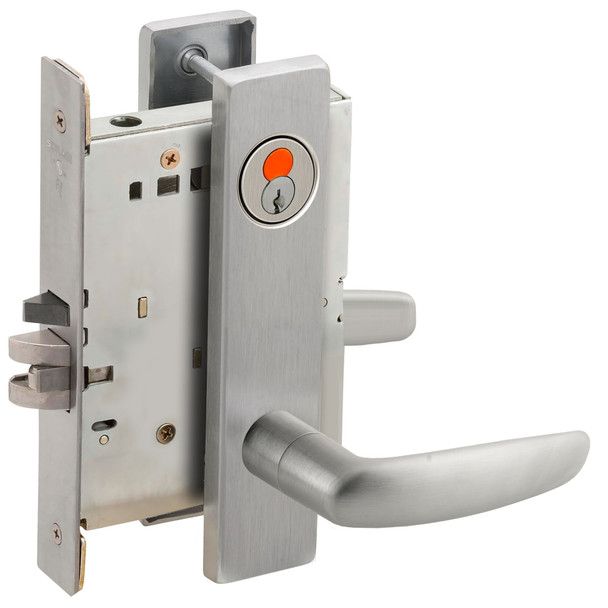

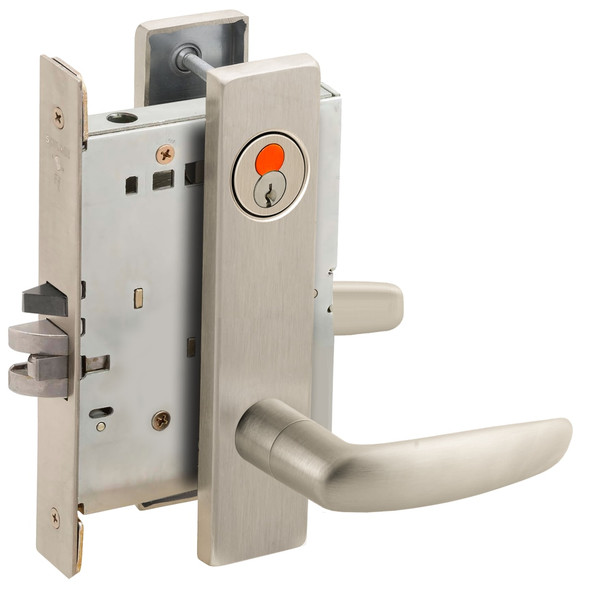

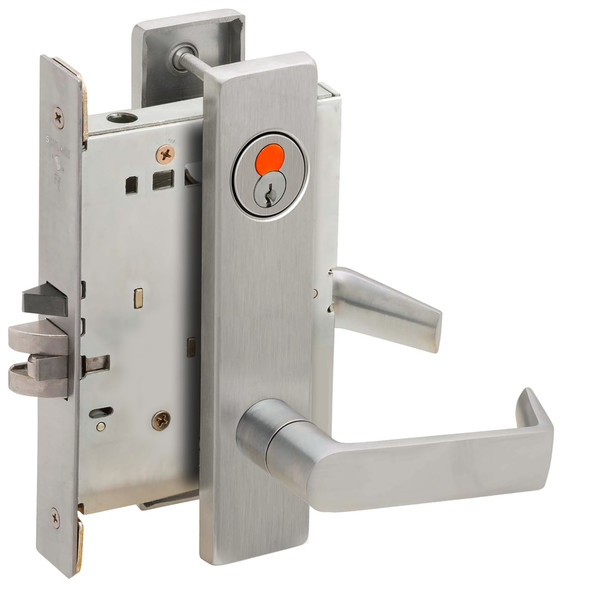

The Schlage L9070H is a Grade 1 extra heavy-duty mortise lock designed for high-traffic commercial environments including schools, hospitals, and factories. It solves the need for reliable, abuse-resistant hardware that maintains consistent operation under constant use without compromising security or aesthetics.
This lock features a universal case supporting ten functions and is field-reversible without opening the case, simplifying installation and retrofit work. As an authorized Schlage dealer, E.D. Locks provides expert product selection and support via sales@edlocks.com or 1-877-207-6067 to ensure you choose the right configuration for your application.
Specifications
- Brand: Schlage
- Model: L9070H 07L 626
- Grade: ANSI Grade 1
- Type: Mortise Lock, Extra Heavy Duty
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate plating
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Functions: Ten functions in one universal case
- Handing: Field-reversible without opening case
- Installation: Thru-bolted trim, floating mounting tabs for beveled doors
- Interior: Screwless shank mounting, locking thumb-turn
