Description

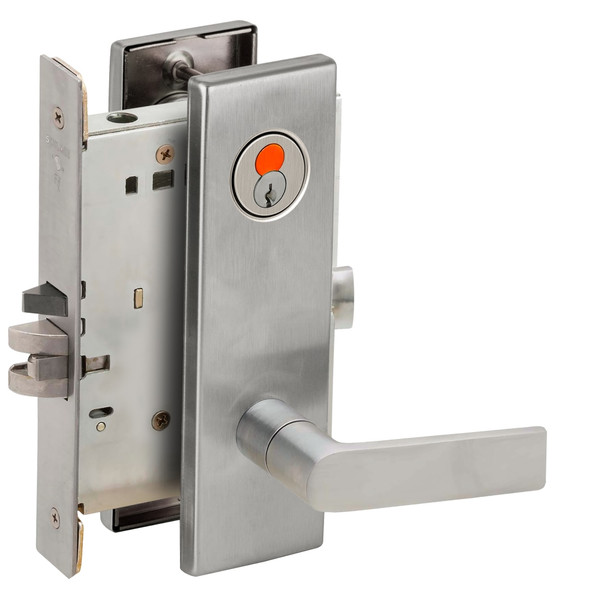

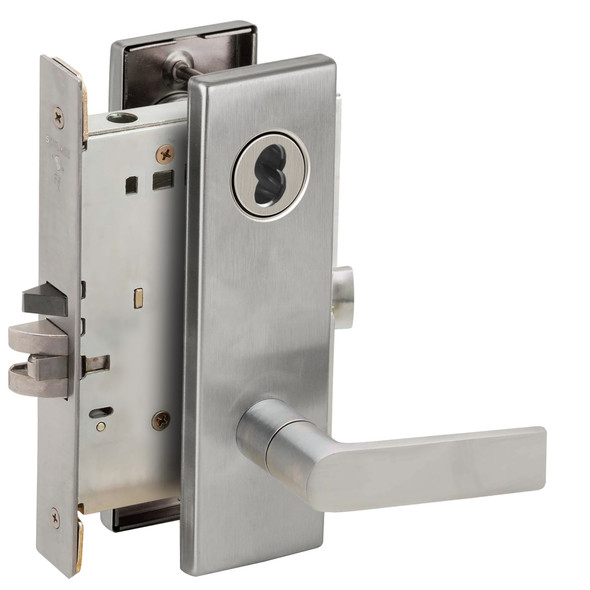

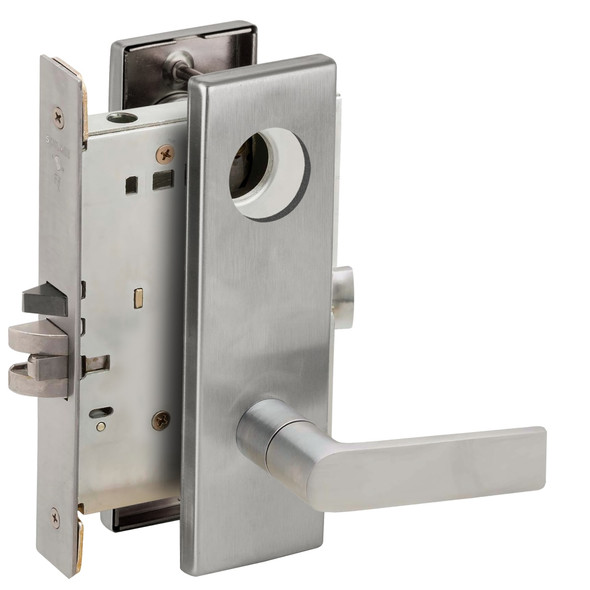

The Schlage L9070J 01N 630 is an ANSI Grade 1 extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. Its fully wrapped steel case, zinc dichromate-plated components, and two-piece anti-friction tongue resist daily wear and abuse while maintaining reliable operation.
This universal lock case supports ten functions in one housing and accepts various trim designs for aesthetic flexibility. Field-reversible handing, floating mounting tabs for beveled doors, and external spring cages simplify installation and retrofit projects. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and product compatibility assistance.
Specifications
- ANSI Grade 1 certified
- Finish: Satin Chrome (630)
- Heavy-gauge wrapped steel case
- Zinc dichromate-plated working parts
- Break-away spindle with hub blocking plate
- Fail secure with spring-loaded fusible link
- Field-reversible handing
- Universal case, 10 functions available
- Floating mounting tabs for beveled edges
