Description

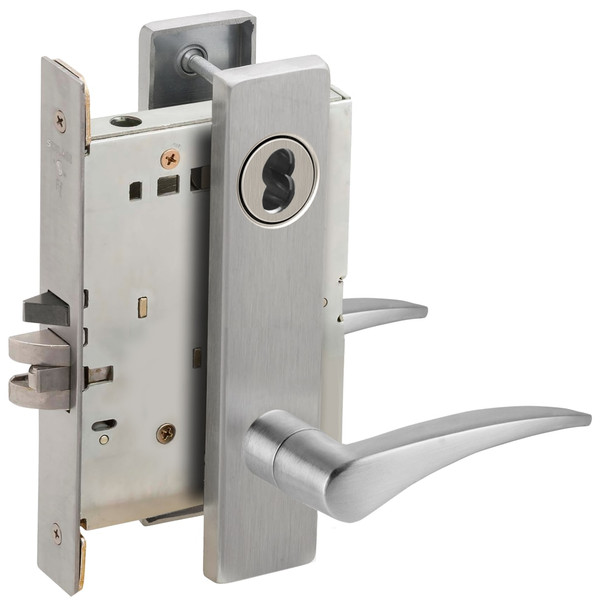

The Schlage L9070J is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. It delivers ANSI Grade 1 security with a fully wrapped steel case, anti-friction components, and fail-secure fire protection, designed to handle constant use without compromise.
This right-hand lock features universal ten-function capability, field-reversible handing, and adaptable mounting tabs for beveled doors. Compatible with standard mortise preparations. An authorized E.D. Locks dealer provides expert specification guidance and free shipping over $450. Contact sales@edlocks.com or call 1-877-207-6067 for handing confirmation and keying options.
Specifications
- Model: L9070J 12L 630 RH
- Series: Schlage L Series
- Grade: ANSI Grade 1
- Type: Extra Heavy-Duty Mortise Lock
- Handing: Right Hand (RH)
- Functions: Ten functions in one case
- Case Construction: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Spindle: Break-away design with easy replacement
- Security Features: Hub blocking plate, spring-loaded fusible link, fail-secure mode
- Trim Mount: Thru-bolted, no exposed screws
- Lever: Independent rotation, both directions, locking thumb-turn inside
- Installation: Floating mounting tabs, field-reversible without opening case, external spring cages
