Description

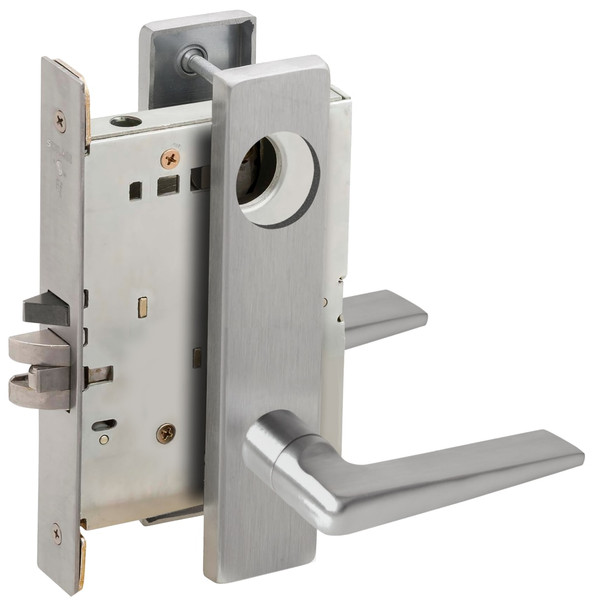

The Schlage L9070L is an extra-heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, this lock features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design to deliver dependable security and operation under constant use without failure.
This universal lock case supports ten functions in one housing with field-reversible handing, eliminating the need to open the case. Compatible with standard mortise lock preparations, it installs with thru-bolted trim and offers fail-secure capability via a spring-loaded fusible link. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification guidance, keying options, and fast shipping on institutional hardware orders.
Specifications
- Grade: ANSI Grade 1
- Lock Type: Mortise
- Series: Schlage L Series
- Model: L9070L 05L 626
- Case Construction: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Tongue: Two-piece anti-friction design
- Spindle: Break-away for easy replacement
- Handing: Field-reversible without opening case
- Functions: Ten functions in universal case
- Mounting: Floating tabs adjust for beveled door edges
- Fail-Safe: Spring-loaded fusible link for fire mode
- Inside Lever: Screwless shank mounting, locking thumb-turn
