Description

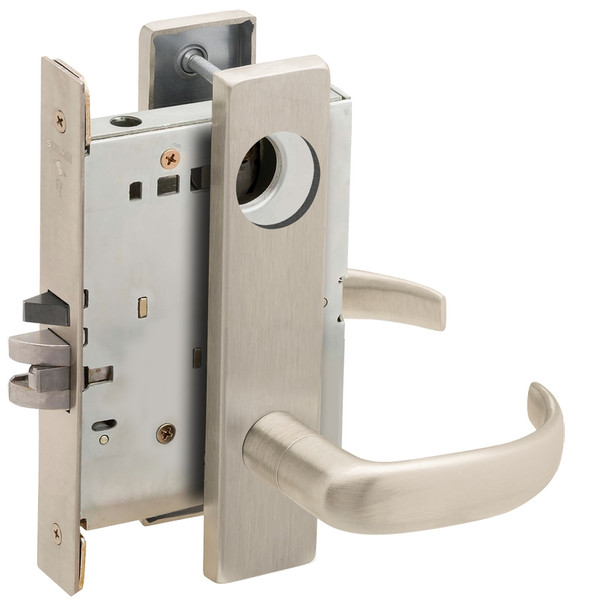

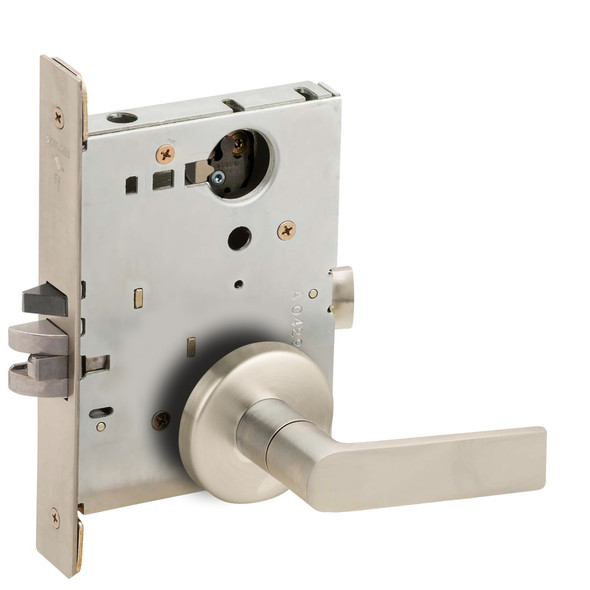

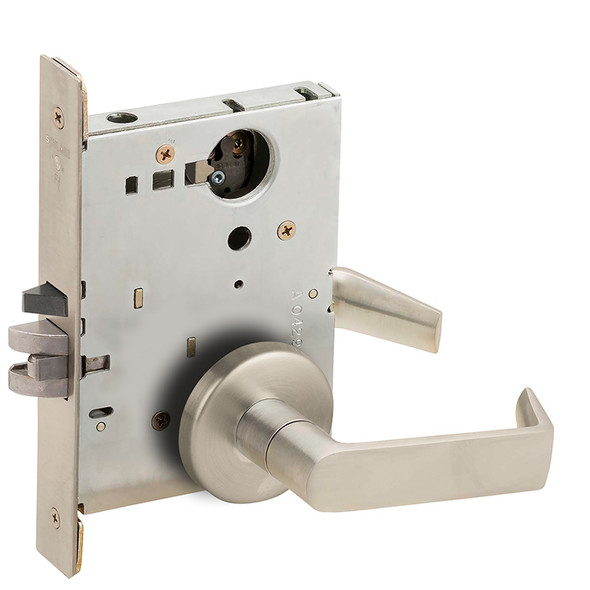

The Schlage L9070L is an extra-heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design that withstand constant daily use and abuse without compromise.
This versatile lock accommodates ten functions in one universal case and is field-reversible for either hand without disassembly. Compatible with standard mortise installations on beveled doors, it includes fail-secure fire protection via a fusible link and locking thumb-turn visibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert help selecting the right trim and keying configuration for your application.
Specifications
- Brand: Schlage
- Model: L9070L 17L 619
- Security Grade: ANSI Grade 1
- Type: Mortise Lock, Extra Heavy Duty
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated all-metal
- Functions: Ten functions available in one case
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Mounting: Floating tabs for beveled door edges, thru-bolted trim
- Handing: Field-reversible without opening lock case
- Interior Control: Locking thumb-turn with visual locked/unlocked indication
- Anti-Manipulation: Hub blocking plate, break-away spindle
