Description

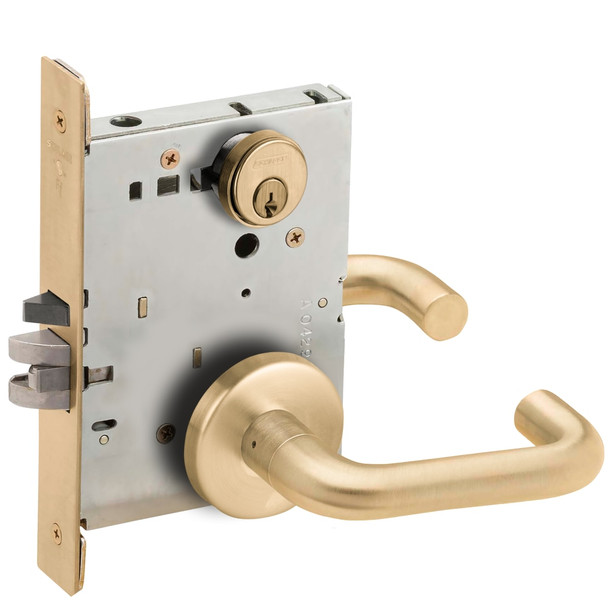

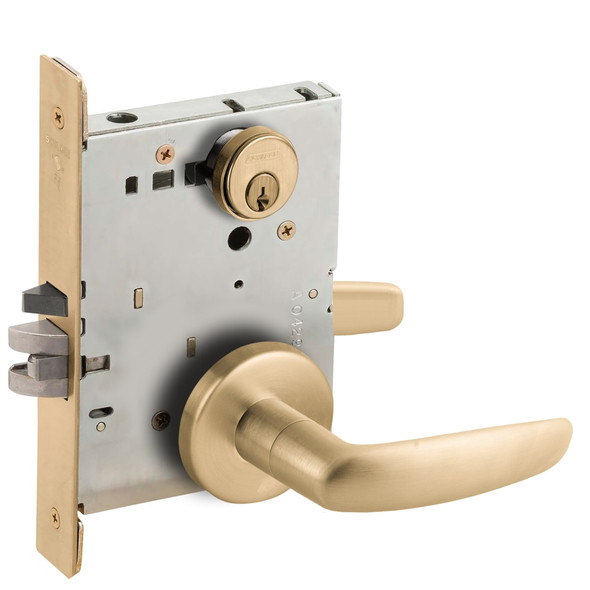

The Schlage L9070P is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. Its Grade 1 ANSI-certified construction features a fully wrapped steel case, all-metal zinc dichromate-plated components, and anti-friction design to withstand constant use and abuse without compromising security or operation.
This universal lock case accommodates ten functions in one body with field-reversible handing, making retrofit and installation straightforward. The L9070P includes fail-secure fire protection via spring-loaded fusible link and break-away spindle for easy replacement. As an authorized Schlage dealer, E.D. Locks offers expert guidance on function selection, keying, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI Grade 1
- Series: Schlage L9000
- Model: L9070P 03B 606
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate-plated parts
- Handing: Field-reversible without opening lock case
- Functions: Ten available in one universal case
- Security Features: Break-away spindle, hub blocking plate, locking thumb-turn
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Installation: Thru-bolted trim, floating mounting tabs for beveled doors
