Description

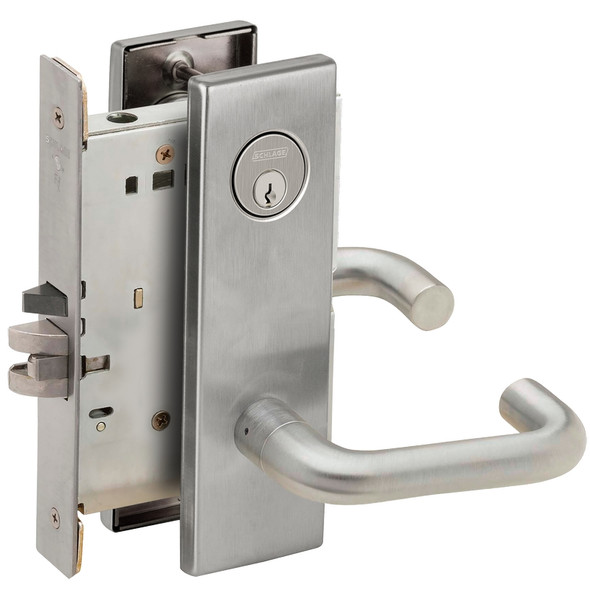

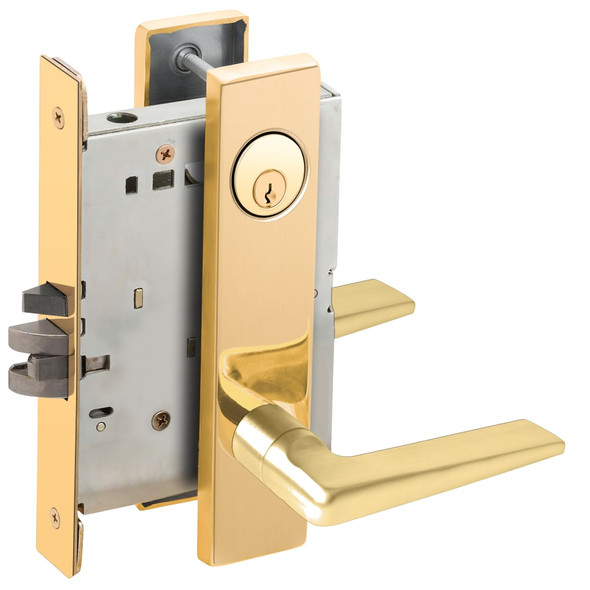

The Schlage L9070P is an extra heavy-duty mortise lock designed for high-traffic commercial environments like schools, hospitals, and factories. This Grade 1 certified lock combines robust security with dependable operation, featuring a fully wrapped steel case, anti-friction components, and break-away spindle design to withstand constant use and abuse.
Universal lock case accommodates multiple functions and finishes for flexible retrofit applications. Compatible with standard mortise preparations on 1 3/8 inch to 1 3/4 inch thick doors. Field-reversible handing simplifies installation without opening the case. Contact our experts at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and authorized dealer support.
Specifications
- Grade: ANSI Grade 1
- Type: Mortise lock
- Finish: 630 (Satin Stainless Steel)
- Functions: Ten functions available in one case
- Spindle: Break-away for security and easy replacement
- Case: Heavy-gauge, fully wrapped steel with zinc dichromate-plated parts
- Handing: Field-reversible without opening case
- Door thickness: 1 3/8 inch to 1 3/4 inch
- Mounting tabs: Floating, adjusts for beveled door edges
- Security features: Hub blocking plate, fusible link fail-secure mode
