Description

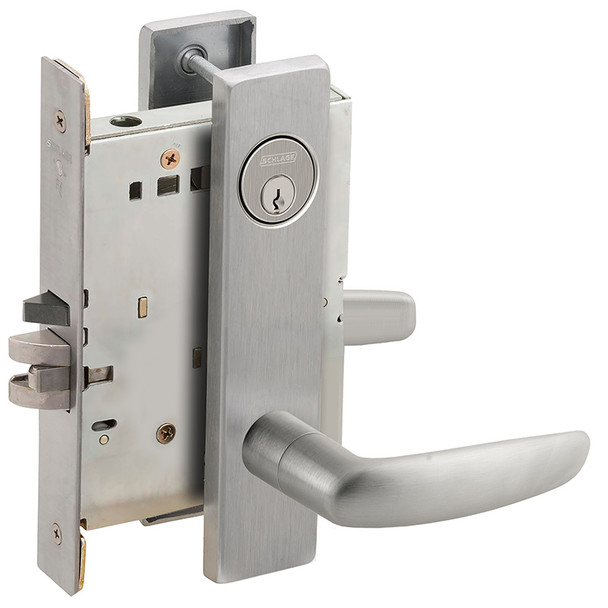

The Schlage L9070P 07L 630 is an extra-heavy duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock withstands constant use with a fully wrapped steel case, all-metal zinc dichromate-plated working parts, and a two-piece anti-friction tongue that minimizes wear.
The L9070P offers ten functions in one universal case, field-reversible handing, and fail-secure fire protection via a spring-loaded fusible link. It features a break-away spindle for easy replacement and hub blocking to discourage spindle manipulation. Compatible with standard mortise applications; contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, finish options, and installation support.
Specifications
- Model: L9070P 07L 630
- Brand: Schlage
- Lock Type: Mortise
- Grade: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Functions Available: 10
- Handing: Field-reversible without opening case
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Security Features: Break-away spindle, hub blocking plate, screwless shank mounting
- Installation: Universal case with floating mounting tabs for beveled doors
