Description

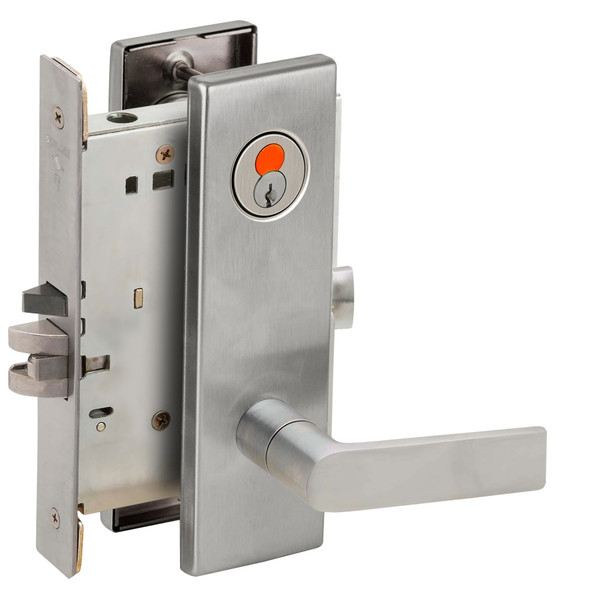

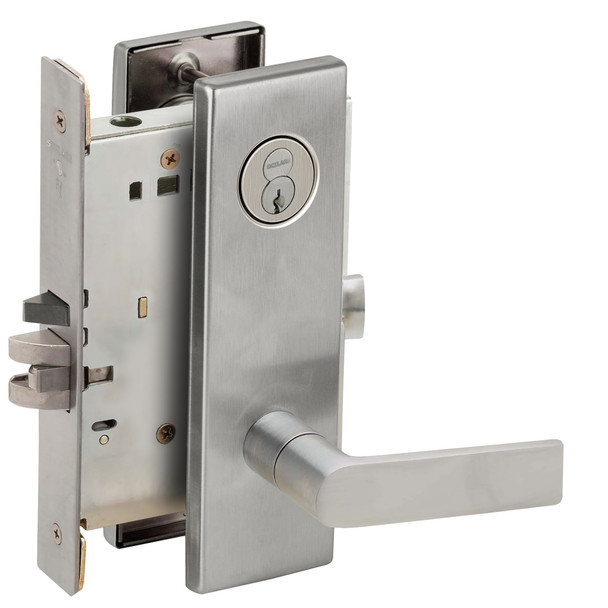

The Schlage L9070R is an extra-heavy-duty mortise lock engineered for high-traffic institutional environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and resists door-edge attacks with a heavy-gauge steel case, making it ideal for facilities demanding durability without compromise on security or aesthetics.
This universal lock case supports ten functions in one body and accommodates beveled doors via floating mounting tabs. Field-reversible handing eliminates the need to open the case. For compatibility details, keying options, and expert guidance on selecting the right configuration for your application, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage
- Model: L9070R 01N 630
- Type: Mortise Lock
- Grade: ANSI Grade 1
- Finish: Satin Stainless (630)
- Case: Heavy-gauge steel, fully wrapped
- Working parts: All-metal, zinc dichromate-plated
- Spindle: Break-away type for easy replacement
- Mounting: Floating tabs, field-reversible handing
- Functions: Universal case, ten functions available
- Security features: Hub blocking plate, spring-loaded fusible link (fail secure mode)
