Description

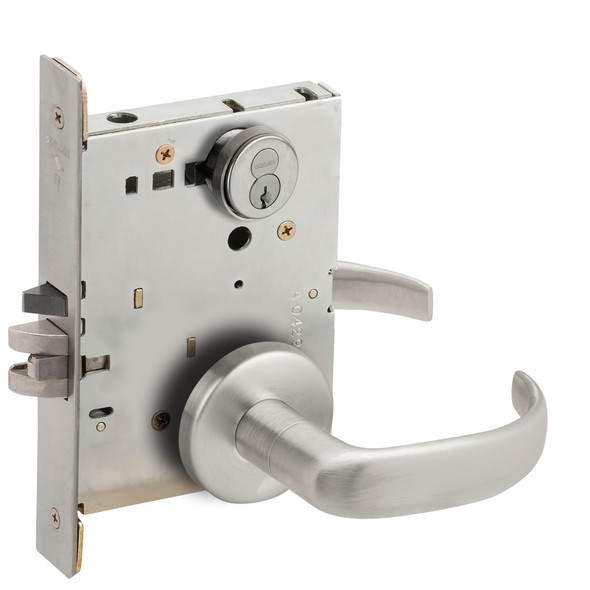

The Schlage L9070R is an extra-heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. This Grade 1 ANSI-certified lock features a fully wrapped steel case, zinc-plated working parts, and anti-friction components designed to withstand constant use and abuse while maintaining reliable operation.
The L9070R accommodates ten functions in a single universal case and supports field-reversible handing without disassembly. It is compatible with standard mortise applications and features a break-away spindle for security and easy replacement. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for keying options, handing configuration, and installation guidance tailored to your project requirements.
Specifications
- Brand: Schlage
- Model: L9070R 17N 626
- Type: Mortise Lock
- ANSI Grade: 1
- Finish: Satin Chrome (626)
- Case: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate plated
- Spindle: Break-away design
- Handing: Field-reversible
- Functions: 10 available in universal case
- Features: Hub blocking plate, spring-loaded fusible link, independent lever rotation, locking thumb-turn
