Description

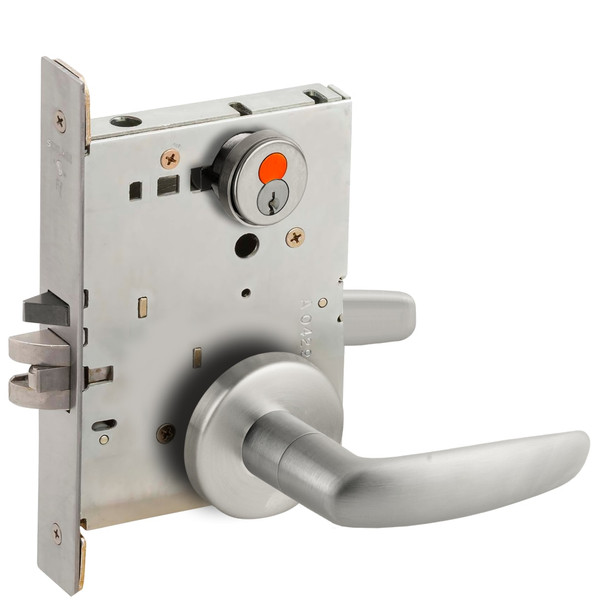

The Schlage L9070T is an extra heavy-duty mortise lock designed for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc dichromate-plated working parts, and a two-piece anti-friction tongue to withstand constant use and abuse while maintaining dependable operation.
This universal lock case accommodates ten functions in one body and is field-reversible without opening the case, simplifying installation and retrofits. Compatible with standard mortise lock cutouts, the L9070T includes a break-away spindle for security and easy replacement, plus a fail-secure fusible link for fire safety. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration and keying options.
Specifications
- Grade: ANSI Grade 1
- Series: Schlage L Series
- Function: 10-function universal case
- Case: Heavy-gauge, fully wrapped steel
- Working Parts: Zinc dichromate-plated all-metal
- Spindle: Break-away with easy replacement
- Handing: Field-reversible without opening case
- Mounting: Floating tabs for beveled door edges
- Fire Safety: Fail-secure mode with fusible link
- Finish: Satin Chrome (626)
