Description

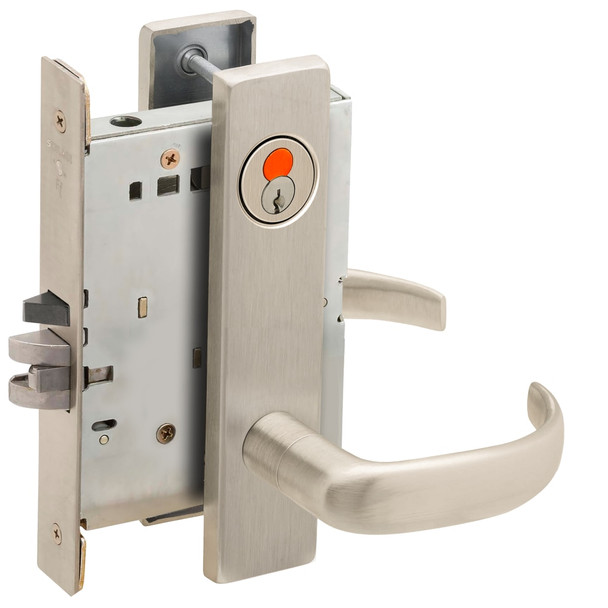

The Schlage L9070T is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. This Grade 1 certified lock features a fully wrapped steel case, zinc-plated working parts, and a break-away spindle to prevent spindle manipulation and enable easy replacement, solving security and durability concerns in demanding applications.
The L9070T accommodates ten functions in one universal case with field-reversible handing and floating tabs for beveled doors. It installs into standard mortise preparations and features independent lever rotation and fail-secure fire mode via spring-loaded fusible link. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, keying options, and specification details.
Specifications
- Brand: Schlage
- Model: L9070T 17L 619
- Series: L9000 Extra Heavy Duty
- Security Grade: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel, zinc dichromate-plated
- Finish: Satin Chrome (619)
- Handing: Field-reversible without opening lock case
- Functions: Ten available in universal case
- Spindle: Break-away design for easy replacement
- Fire Mode: Fail-secure with spring-loaded fusible link
- Trim Mounting: Thru-bolted, screwless shank mounting
- Features: Hub blocking plate, independent lever rotation, locking thumb-turn
