Description

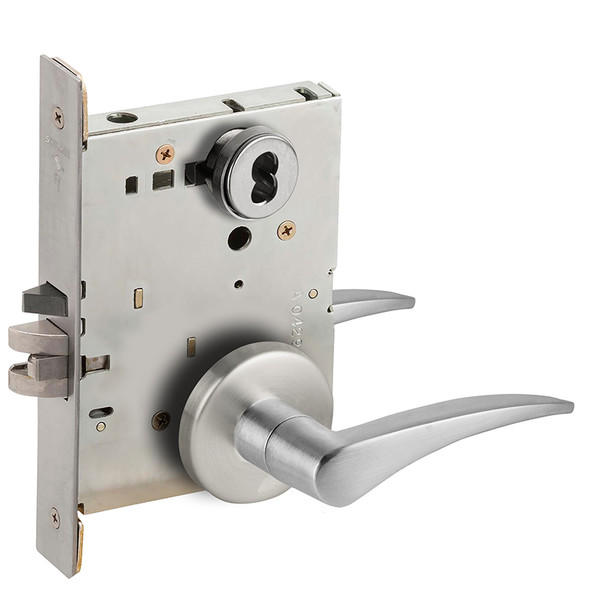

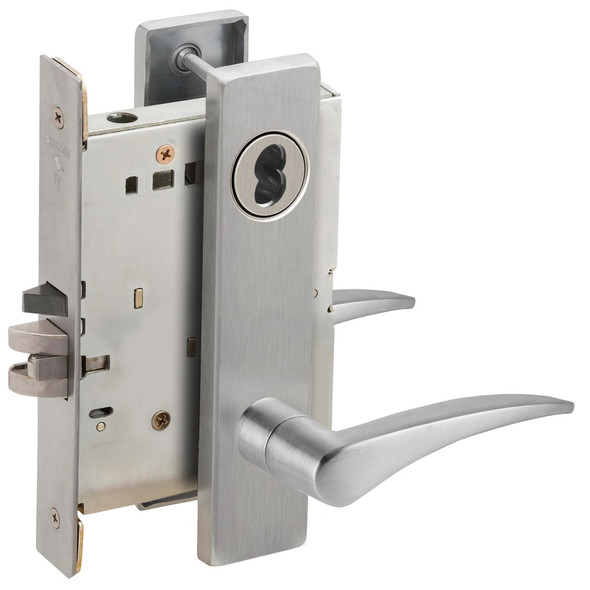

The Schlage L9076B is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock features a heavy-gauge steel case, zinc dichromate-plated components, and anti-friction tongue design to withstand constant daily use and abuse while maintaining dependable operation.
The L9076B offers ten functions in one universal case with field-reversible handing, floating mounting tabs for beveled doors, and fail-secure fire mode via fusible link. It is compatible with standard mortise lock installations and accepts Schlage keyways. For expert assistance selecting the right configuration or keying options for your application, contact our authorized Schlage dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage
- Model: L9076B
- Series: L Series (L9000)
- Security Grade: ANSI Grade 1
- Case Material: Heavy-gauge steel with full wrap
- Plating: Zinc dichromate
- Finish Code: 630 (Satin Stainless Steel)
- Handing: RH (Right Hand, field-reversible)
- Functions Available: 10 in one case
- Mounting: Universal case with floating tabs
- Fire Mode: Fail-secure with fusible link
- Interior: Break-away spindle, hub blocking plate, screwless shank lever mounting
