Description

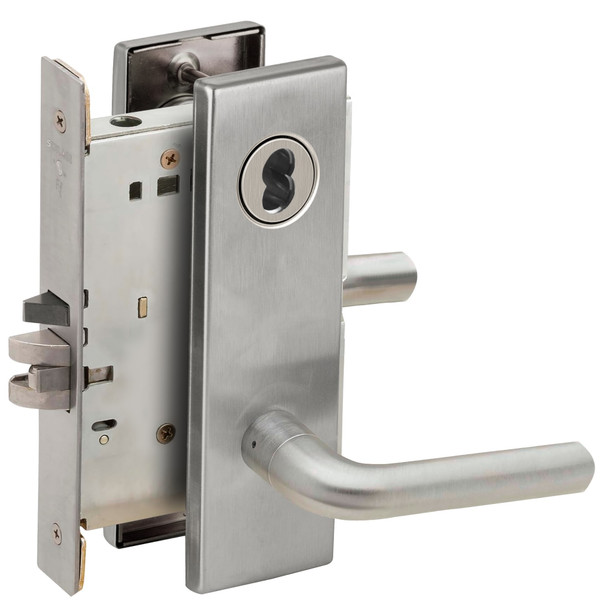

The Schlage L9076J 02N 626 is an extra heavy-duty mortise lock engineered for high-traffic institutional environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it resists door-edge attacks with a heavy-gauge steel case and all-metal zinc dichromate-plated components, solving the durability challenge in demanding security applications.
This lock accommodates ten functions within a universal case and features field-reversible handing without disassembly. Compatible with standard mortise applications, it includes a break-away spindle for easy replacement and fail-secure fire mode via spring-loaded fusible link. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying advice and authorized dealer support.
Specifications
- Brand: Schlage
- Model: L9076J 02N 626
- Type: Extra Heavy-Duty Mortise Lock
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Functions: 10 functions in universal case
- Handing: Field-reversible without opening case
- Spindle: Break-away design
- Fire Mode: Fail-secure with spring-loaded fusible link
- Mounting: Floating tabs adjust for beveled doors
- Trim Mount: Thru-bolted through door, no exposed screws
