Description

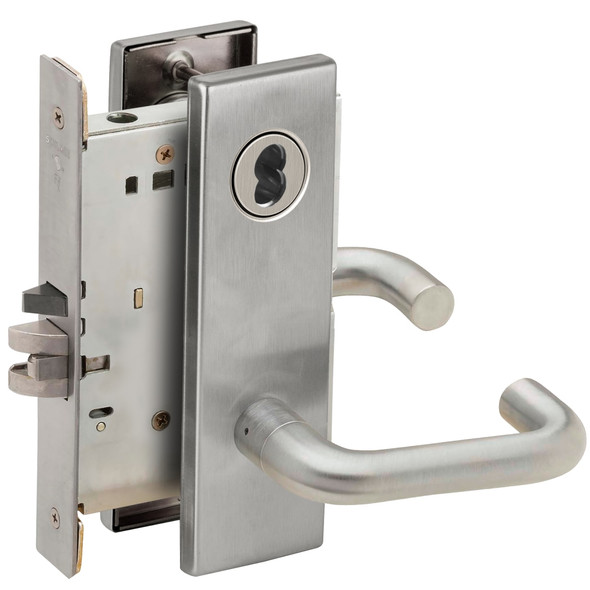

The Schlage L9076J 03L 626 is a heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design to withstand constant daily use without compromise.
This universal lock case supports ten functions in one housing and accommodates beveled doors with floating mounting tabs. Field-reversible handing eliminates the need to open the case during installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, keying options, and finish compatibility to ensure the right fit for your application.
Specifications
- ANSI Grade: Grade 1
- Lock Type: Mortise
- Series: L9000 (L Series)
- Case Material: Heavy-gauge wrapped steel
- Working Parts Finish: Zinc dichromate-plated
- Functions: 10 functions available in one case
- Handing: Field-reversible without opening case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Installation: Thru-bolted trim with floating mounting tabs for beveled doors
- Lever Operation: Independent rotation, both directions
