Description

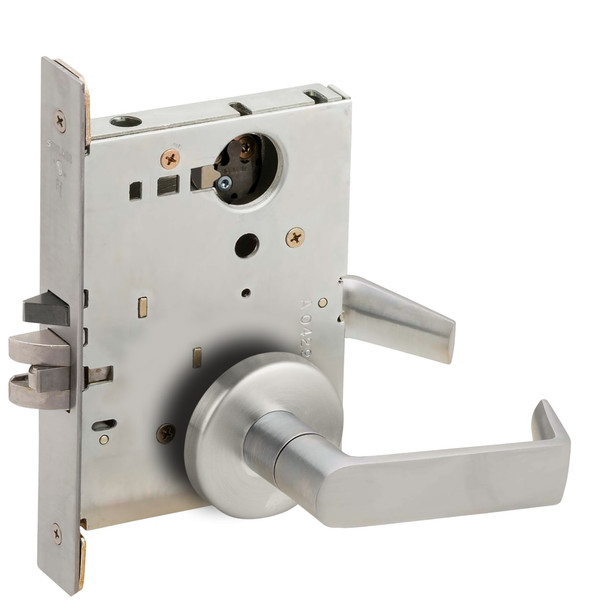

The Schlage L9076L 06B 630 is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock features a heavy-gauge steel case, all-metal zinc dichromate-plated working parts, and a two-piece anti-friction tongue designed to handle constant use without compromise.
The L9076L supports ten functions in one universal case with field-reversible handing and adaptability to beveled door edges. Installation is straightforward with thru-bolted trim and simple retrofit capability. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection, keying options, and specification. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Schlage
- Model: L9076L 06B 630
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Handing: Field-reversible without opening lock case
- Functions: Ten functions available in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail secure mode
- Mounting: Thru-bolted trim with floating tabs for beveled doors
- Inside Lever: Screwless shank mounting with locking thumb-turn
